The PowerMark® Plus™ 3-phase load center is designed for use in commercial or high rise residential units the galvanized box and tin plated copper stabs ensure the reliability and durability of the load center. The product is available with the main circuit breaker factory installed or the main lugs factory installed.

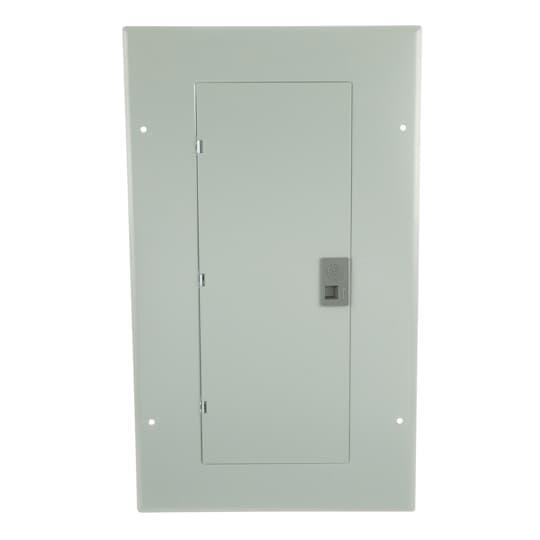

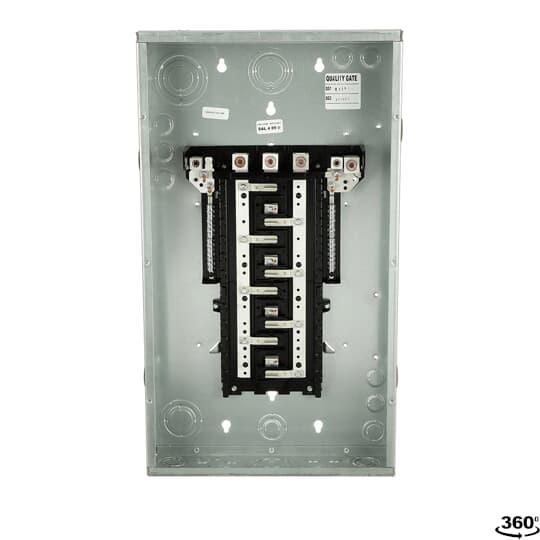

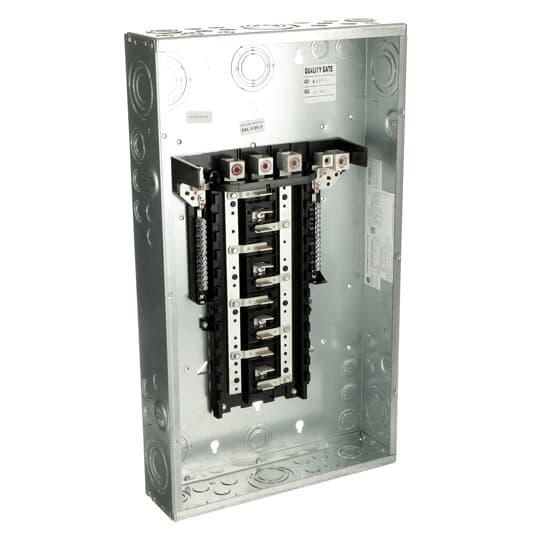

GE PowerMark Plus™ Industrial Solutions Main Lug Loadcenter, 3-Phase Standard, 208Y/120 VAC, 150 A, 22 kA Interrupt, 24 Circuits, THQL Breaker, 4-Wire Wiring Configuration, 24 Spaces, 1 to 3/0 AWG, 2/0 to 3/0 AWG Wire, Flush Mounting, NEMA 1 Enclosure, NEMA 7 Enclosure Box, 24-11/16 in H x 14 in W x 3-3/4 in D Dimensions

• https://externalassets.unilogcorp.com/ASSETS/DOCUMENTS/ITEMS/EN/GE_TL24415C_Specification_Sheet.pdf https://www.iesbuy.com//ASSETS/DOCUMENTS/ITEMS/EN/https://externalassets.unilogcorp.com/ASSETS/DOCUMENTS/ITEMS/EN/GE_TL24415C_Specification_Sheet.pdf

• Suitable for use as service entrance equipment when installed in accordance with the national electrical Code®
• 6 to 42 circuit devices UL listed for bottom mounted lug by installing complete unit box, interior and front upside down
• 60 to 70 deg C conductor rating
• Main lug models field convertible to main breaker
• Split neutrals extend the full length of the interior for ease of wiring
• Entire main lug line converts easily to main breaker
• Front packed in inner carton for added protection
• Straight through main wiring
• Compact box maintains optimum wire bending space
• Aluminum bus with copper mounting stabs providing copper-to-copper stab connections
• Top and bottom feed
• 1-piece interior removes and reinstalls easily
• Full length neutrals are easier to wire, 2 reducing installation time and cost
• Minimum 100% neutral terminations
• Combination slotted/Robertson square drive speeds screw wiring
• Tie bar may be removed to split neutral ground
• (24) 1 in space
• 2/0 to 3/0 AWG aluminum
• Combination mounting
