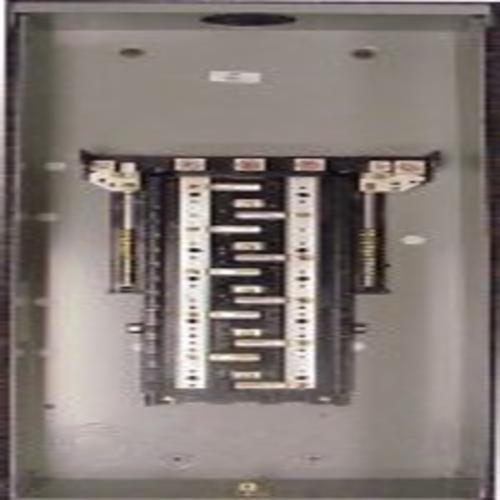

The PowerMark Plus* three phase load center is designed for use in commercial or high-rise residential units. The galvanized box and tin plated copper stabs ensure the reliability and durability of the load center. The product is available with the main circuit breaker factory installed or the main lugs factory installed.

GE Main Lug Load Center, 3-Phase Standard, Series: PowerMark Plus TL, 208Y/120 VAC, 150 A, 65 kA Interrupt, 18 Circuits, THQL Breaker, Plug-In Breaker Mounting, 4-Wire Wiring Configuration, 18 Spaces, 1 to 3/0 AWG Wire, Plug-In Mount, NEMA 1, 23 in L x 14 in W x 3-3/4 in H

• Specification Sheet https://www.iesbuy.com//ASSETS/DOCUMENTS/ITEMS/EN/GE_TM42422R_Datasheet.pdf
• Specification Sheet https://www.iesbuy.com//ASSETS/DOCUMENTS/ITEMS/EN/IDW_DOCUMENT_1520610504040.pdf

• Aluminum bus with copper mounting stabs providing copper-to-copper stab connections
• 60 deg or 75 deg C conductor rating
• Suitable for use as service entrance equipment when installed in accordance with the national electrical code
• 22 kAIC rms symmetrical, except where noted
• 6 - 42 circuit devices UL listed for bottom mounted lugs by installing complete unit (box, interior and front) upside down
• One piece interior removes and reinstalls easily
• Full length neutrals are easier to wire, 2 reducing installation time and cos
• Minimum 100% neutral terminations
• Combination slotted/Robertson square drive speeds screw wiring
• Tie bar may be removed to split neutral/ground
• (18) 1 in space
• 2/0 - 3/0 AWG aluminum
• Combination mounting
