EATON's CH 3/4 in load centers enclose CH breakers for power distribution and circuit protection in residential and light commercial applications. Also called a breaker box, electrical box or even a fuse box, the main function is to take electricity supplied by the utility and distribute it throughout the home to feed lights and receptacles. They are used on services providing no more than 240 VAC and are available with bus rated 40-600A. Covers are available as surface, flush or combination.

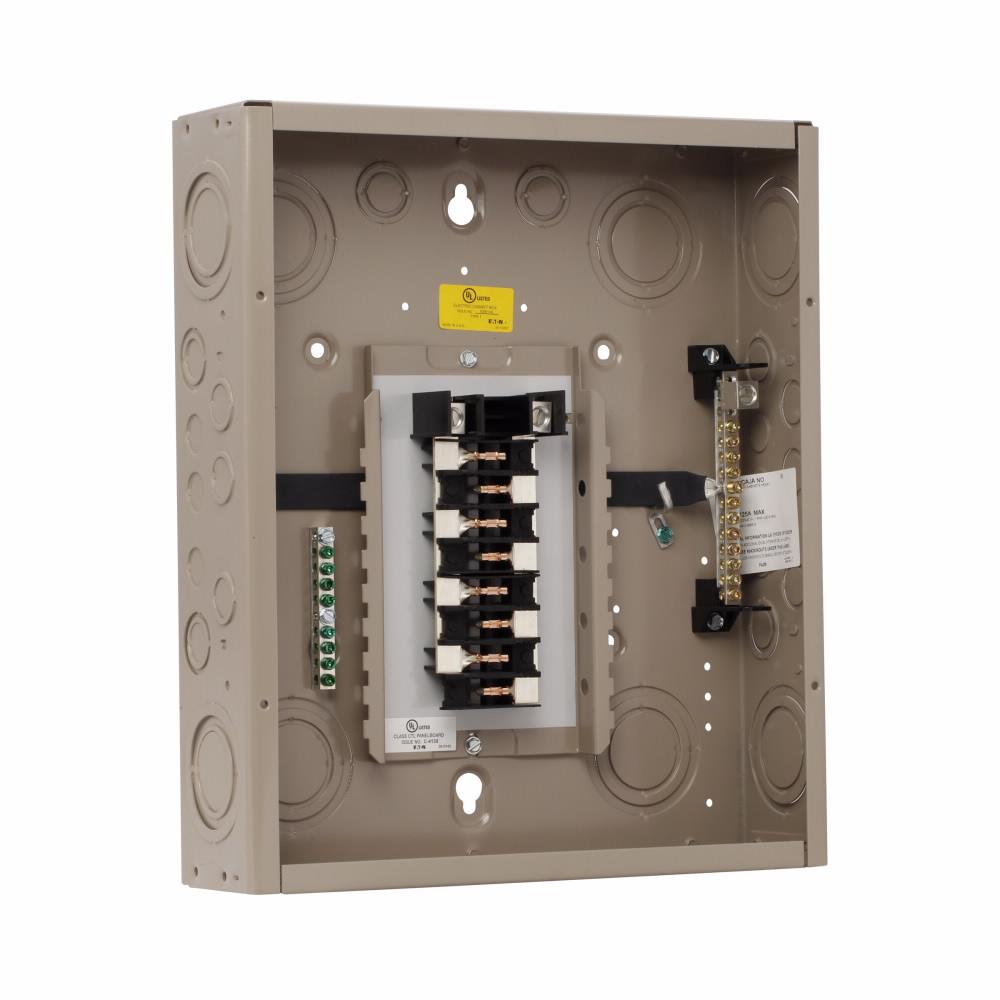

EATON Main Lug Load Center, 1-Phase Standard, 120/240 VAC, 125 A, 16 Pole, 10 kA Interrupt, 16 Circuits, Type CH Breaker, Plug-On Breaker Mounting, 3-Wire Wiring Configuration, 125 A Bus, 16 Spaces, 6 to 2/0 AWG Wire, Flush Mounting, NEMA 1 Enclosure, NEMA B Enclosure Box, Metal Housing Material, 16.75 in H x 14.31 in W x 3.88 in D Dimensions

• Brochure https://www.iesbuy.com//ASSETS/DOCUMENTS/ITEMS/EN/Cutler_Hammer_BR2040N200R_Brochure.pdf
• Brochure https://www.iesbuy.com//ASSETS/DOCUMENTS/ITEMS/EN/IDW_DOCUMENT_1520570718145.pdf
• Brochure https://www.iesbuy.com//ASSETS/DOCUMENTS/ITEMS/EN/https://www.ideadigitalcontent.com/files/10964/ID-BRO-v1-BR003001EN.pdf
• Installation Instructions https://www.iesbuy.com//ASSETS/DOCUMENTS/ITEMS/EN/IDW_DOCUMENT_1520596369118.pdf
• Installation Instructions https://www.iesbuy.com//ASSETS/DOCUMENTS/ITEMS/EN/https://www.ideadigitalcontent.com/files/10964/IL00300001Y.pdf
• Specification Sheet https://www.iesbuy.com//ASSETS/DOCUMENTS/ITEMS/EN/Cutler_Hammer_CH16L125B_Datasheet.pdf
• Specification Sheet https://www.iesbuy.com//ASSETS/DOCUMENTS/ITEMS/EN/IDW_DOCUMENT_1520599443195.pdf
• Specification Sheet https://www.iesbuy.com//ASSETS/DOCUMENTS/ITEMS/EN/https://www.ideadigitalcontent.com/files/10964/ID-SPE-v1-CH16L125B.pdf
• Specification Sheet-1 https://www.iesbuy.com//ASSETS/DOCUMENTS/ITEMS/EN/Cutler_Hammer_CH16L125B_Datasheet_1.pdf

• 1-Piece silver flash plated copper bus provides superior conductivity throughout the entire product line
• Steel backpan provides positive, reliable mounting
• Unique sandalwood finish provides an esthetically appealing, scratch resistant powder coating
• CH breakers include an industry exclusive "Trip to OFF" feature that allows a homeowner to easily identify a tripped circuit breaker
• Mechanical flag feature ON CH breakers for easy trip indication
• Suitable for use as service equipment when not more than six service disconnecting mains are provided or when not used as a lighting and appliance panelboard
• Ch8bf-combination, ch8bs-surface
• Overhead/underground feed
• Indoor enclosure
• Insulated/bondable split neutral
• Copper bus
