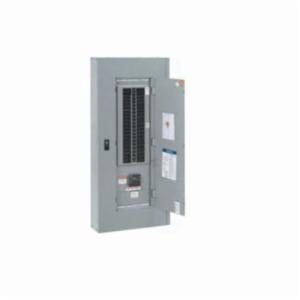

Eaton's SPD series offers the most advanced surge protection for industrial and commercial applications. It can be installed in two configurations: direct integration into electrical assemblies or externally side-mounted to equipment. With an array of features, options, and configurations, there is a solution for all electrical applications, including service entrances, distribution switchboards, panelboards and point-of-use applications.

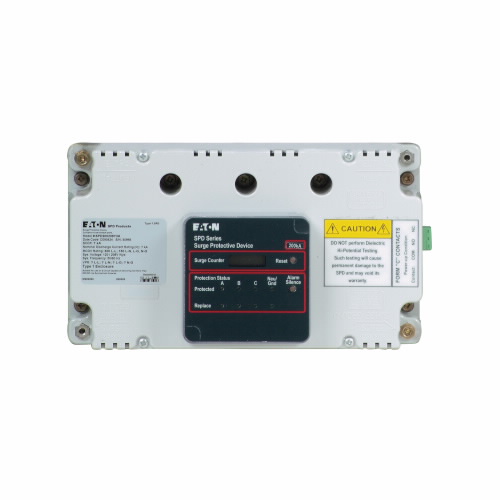

Cutler-Hammer Surge Protective Device, Series: SPD, 120/208Y VAC, 50/60 Hz, 4W+G Wires, 200 kA Short Circuit, 80 kA Peak Surge, 20 kA Nominal Discharge, Modes of Protection: 150 L-N/150 L-G/150 N-G/300 L-L, 3 Phase, Environmental Conditions: -40 to 50 deg C Operating Temperature, 5% Through 95%, Non-Condensing Operating Humidity, NEMA 1, Side Mount, 9.5 in L x 5.4 in W x 3.45 in H

• IDW ITEM DOCUMENTS https://www.iesbuy.com//ASSETS/DOCUMENTS/ITEMS/EN/http://www.ideadigitalcontent.com/files/10964/ID-BRO-v1-CA08100004E.pdf
• Catalog https://www.iesbuy.com//ASSETS/DOCUMENTS/ITEMS/EN/Cutler_Hammer_SPD050208Y1A_Catalog.pdf
• IDW ITEM DOCUMENTS https://www.iesbuy.com//ASSETS/DOCUMENTS/ITEMS/EN/http://www.ideadigitalcontent.com/files/10964/IM01005031E.pdf
• IDW ITEM DOCUMENTS https://www.iesbuy.com//ASSETS/DOCUMENTS/ITEMS/EN/http://www.ideadigitalcontent.com/files/10964/ID-SPE-v1-TD01005025E.pdf
• IDW ITEM DOCUMENTS http://www.eaton.com/ecm/idcplg?IdcService=GET_FILE&allowInterrupt=1&RevisionSelectionMethod=LatestReleased&noSaveAs=0&Rendition=Primary&dDocName=TD01005025E

• Utilizes thermally protected metal oxide varistor (MOV) technology, which provides both high energy capacity and fail safe operation
• Common voltages and configurations as well as a variety of surge current capacity ratings from 50 through 400 kA provide application flexibility.
• Side mount units offer factory-sealed assembly, which prevents arc flash and shock hazards
• Side mount units contain no replaceable parts or items that require periodic maintenance for reduced maintenance costs
• 100 kAIC interrupt rating
