Specially designed for easy installation, Eaton's BR 1-inch load centers house the branch circuit breakers and the wiring required to distribute power to individual circuits. They serve as main breaker for service entrances or as main lug when adding circuits to existing service. The main breaker protects the entire panel and can be used as a service disconnect. The branch breakers protect the wires leading to individual electrical loads such as fixtures and outlets.

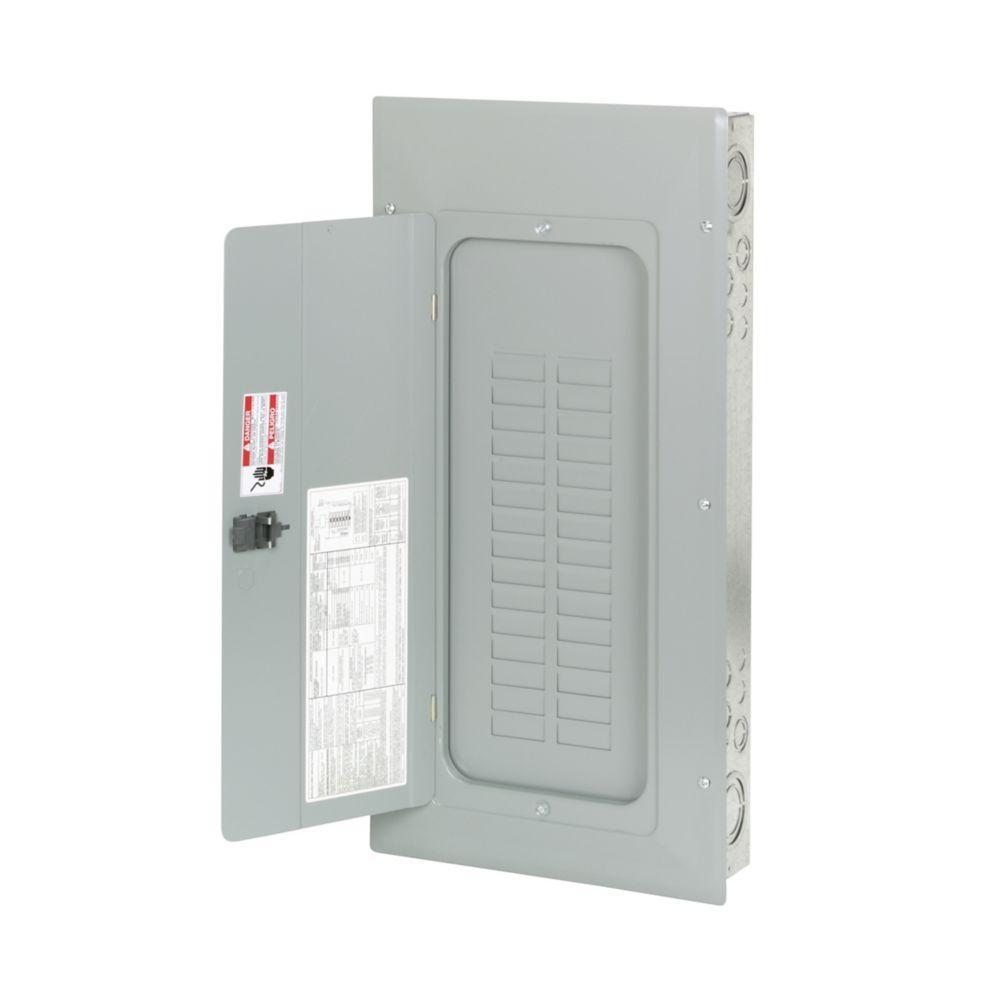

EATON Main Lug Loadcenter, 1-Phase, 120/240 VAC, 200 A, 40 Pole, 25 kA Interrupt, 40 Circuits, BR/BWH Breaker, 3-Wire Wiring Configuration, 30 Spaces, 1 AWG to 300 kcmil Wire, Flush Mount, NEMA 1, NEMA D1 Enclosure Box, 3.88 in L x 14.31 in W x 29.13 in H

• https://externalassets.unilogcorp.com/ASSETS/DOCUMENTS/ITEMS/EN/EATON_CH12L3125B_Installation_Manual.pdf https://www.iesbuy.com//ASSETS/DOCUMENTS/ITEMS/EN/https://externalassets.unilogcorp.com/ASSETS/DOCUMENTS/ITEMS/EN/EATON_CH12L3125B_Installation_Manual.pdf
• https://externalassets.unilogcorp.com/ASSETS/DOCUMENTS/ITEMS/EN/EATON_CH12L3125B_User_Manual.pdf https://www.iesbuy.com//ASSETS/DOCUMENTS/ITEMS/EN/https://externalassets.unilogcorp.com/ASSETS/DOCUMENTS/ITEMS/EN/EATON_CH12L3125B_User_Manual.pdf
• https://externalassets.unilogcorp.com/ASSETS/DOCUMENTS/ITEMS/EN/EATON_BR3040L200_Specification_Sheet.pdf https://www.iesbuy.com//ASSETS/DOCUMENTS/ITEMS/EN/https://externalassets.unilogcorp.com/ASSETS/DOCUMENTS/ITEMS/EN/EATON_BR3040L200_Specification_Sheet.pdf

• Flexible neutral design
• Tangential main knockout
• Single key hole mounting
• Factory pre-attached neutral bonding strap
• Has notch for BRHDK125 hold down kit
• For use with type BR 1 in breakers
• Insulated or bondable split neutral
• Indoor enclosure
• Copper aluminum wire at 60 to 75 deg C for main lugs
• Standard tin plated aluminum bus for excellent conductivity and corrosion-resistance
• No feed through lugs
• Combination mounting
