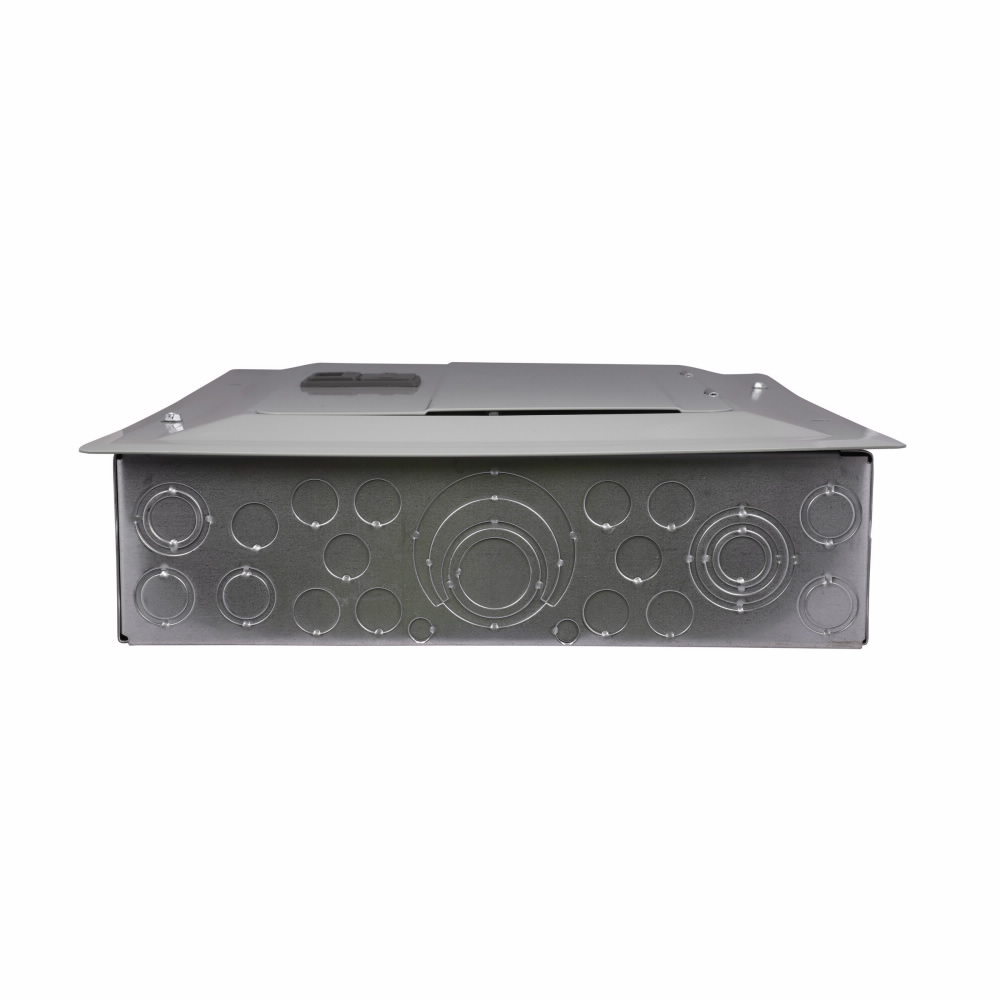

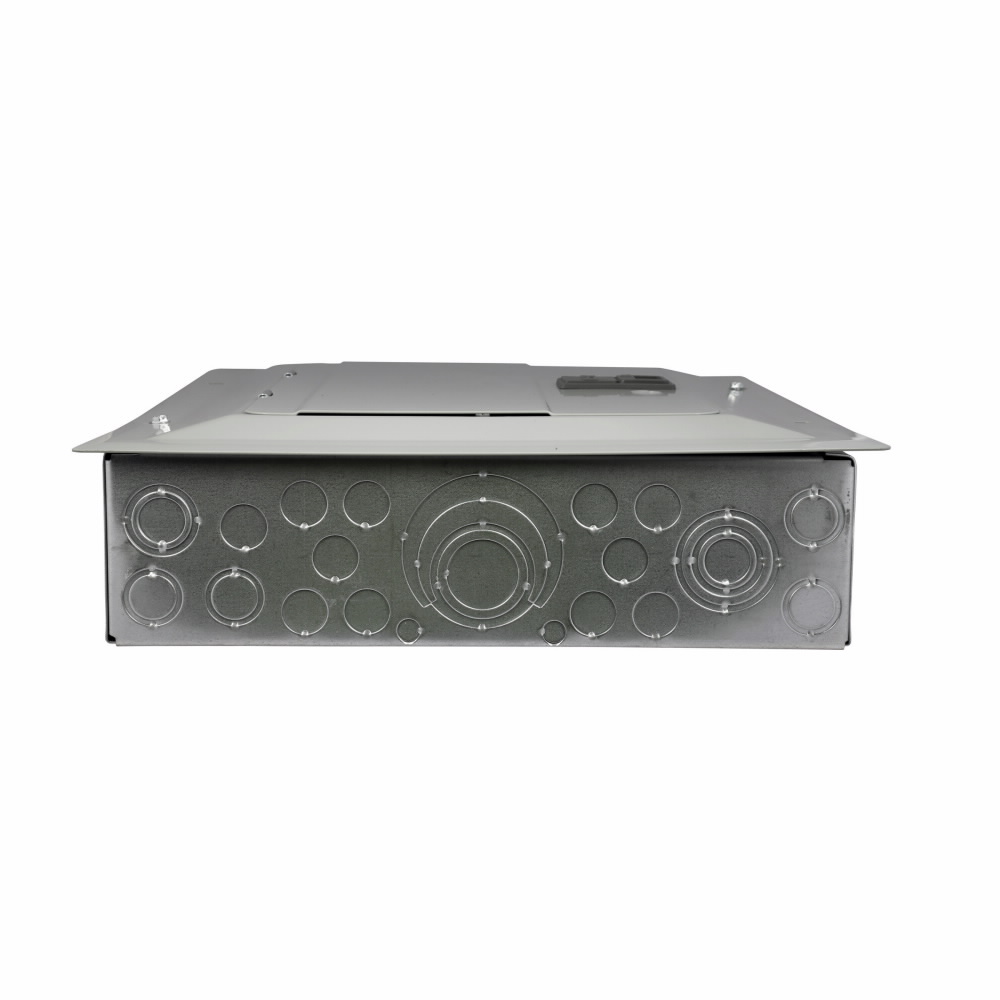

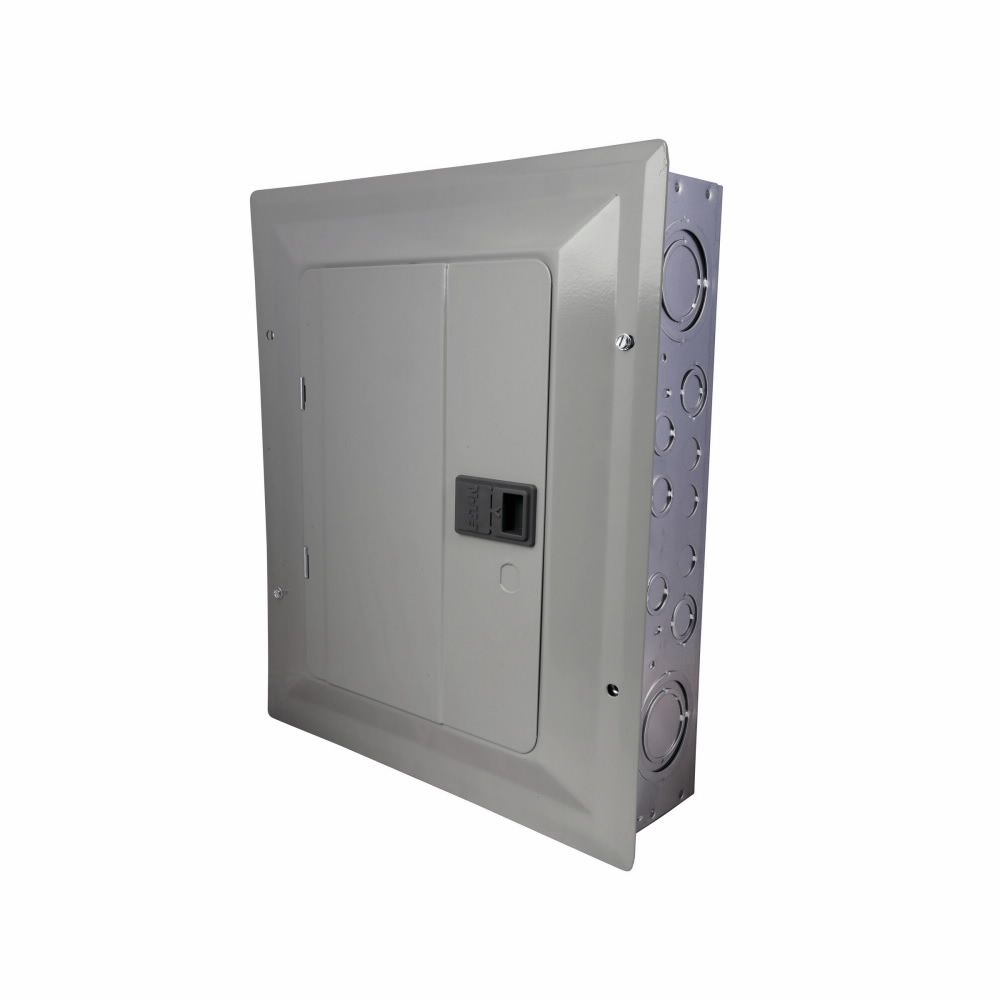

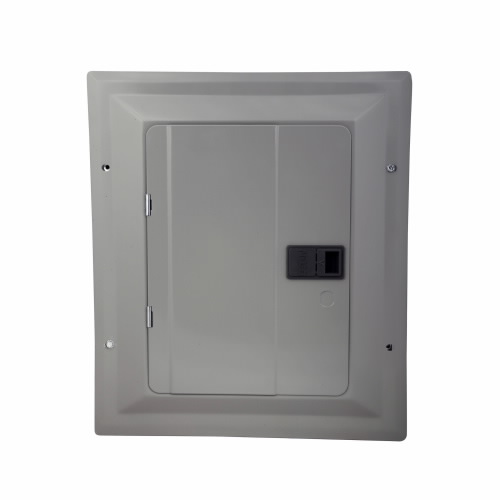

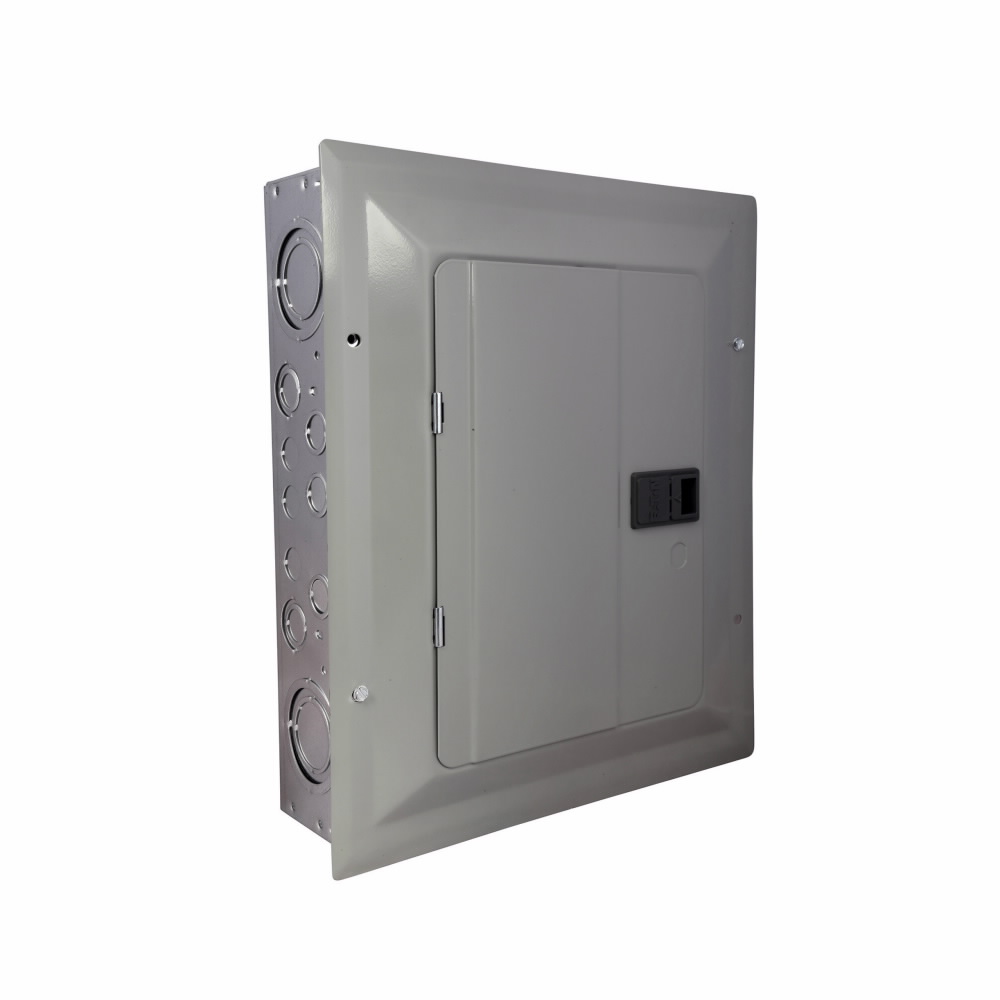

Specially designed for easy installation, EATON's BR 1-inch load centers house the branch circuit breakers and the wiring required to distribute power to individual circuits. They serve as main breaker for service entrances or as main lug when adding circuits to existing service. The main breaker protects the main entire panel and can be used as a service disconnect. The branch breakers protect the wires leading to individual electrical loads such as fixtures and outlets.

EATON Main Lug Load Center, 1-Phase, 120/240 VAC, 125 A, 12 Pole, 10 kA Interrupt, 12 Circuits, Type BR Breaker, 3-Wire Wiring Configuration, 12 Spaces, 6 to 2/0 AWG Wire, Flush/Surface Mounting, NEMA 1 Enclosure, NEMA B1 Enclosure Box, Metal Housing Material, 3.88 in H x 14.31 in W x 16.75 in D Dimensions

• Brochure https://www.iesbuy.com//ASSETS/DOCUMENTS/ITEMS/EN/Cutler_Hammer_BR2040N200R_Brochure.pdf
• Brochure https://www.iesbuy.com//ASSETS/DOCUMENTS/ITEMS/EN/IDW_DOCUMENT_1516382860067.pdf
• Brochure https://www.iesbuy.com//ASSETS/DOCUMENTS/ITEMS/EN/https://www.ideadigitalcontent.com/files/10964/ID-BRO-v1-CA08100002E.pdf
• Installation Instructions https://www.iesbuy.com//ASSETS/DOCUMENTS/ITEMS/EN/IDW_DOCUMENT_1520596369118.pdf
• Installation Instructions https://www.iesbuy.com//ASSETS/DOCUMENTS/ITEMS/EN/https://www.ideadigitalcontent.com/files/10964/IL00300001Y.pdf
• Specification Sheet https://www.iesbuy.com//ASSETS/DOCUMENTS/ITEMS/EN/Cutler_Hammer_BR1212L125_Datasheet_1.pdf
• Specification Sheet https://www.iesbuy.com//ASSETS/DOCUMENTS/ITEMS/EN/IDW_DOCUMENT_1520569710588.pdf
• Specification Sheet https://www.iesbuy.com//ASSETS/DOCUMENTS/ITEMS/EN/https://www.ideadigitalcontent.com/files/10964/ID-SPE-v1-BR1212L125.pdf

• Flexible neutral design
• Tangential main knockout
• Single keyhole mounting
• Factory pre attached neutral bonding strap
• Suitable for use as service equipment when no more than 6 main disconnecting means are provided or when not used as lighting and appliance panelboard
• Has notch for brhdk125 hold down kit
• No feed through lugs
• Combination mounting
• Aluminum bus housing
• Indoor enclosure
• Single, movable neutral is provided
• Insulated/bondable split neutra
