Eaton's B-Line series type 4X panel enclosures are designed to house electrical controls and instruments in indoor or outdoor applications where a corrosive environment exists.  It also helps protect against corrosion, windblown dust and rain,splashing water and hose directed water.

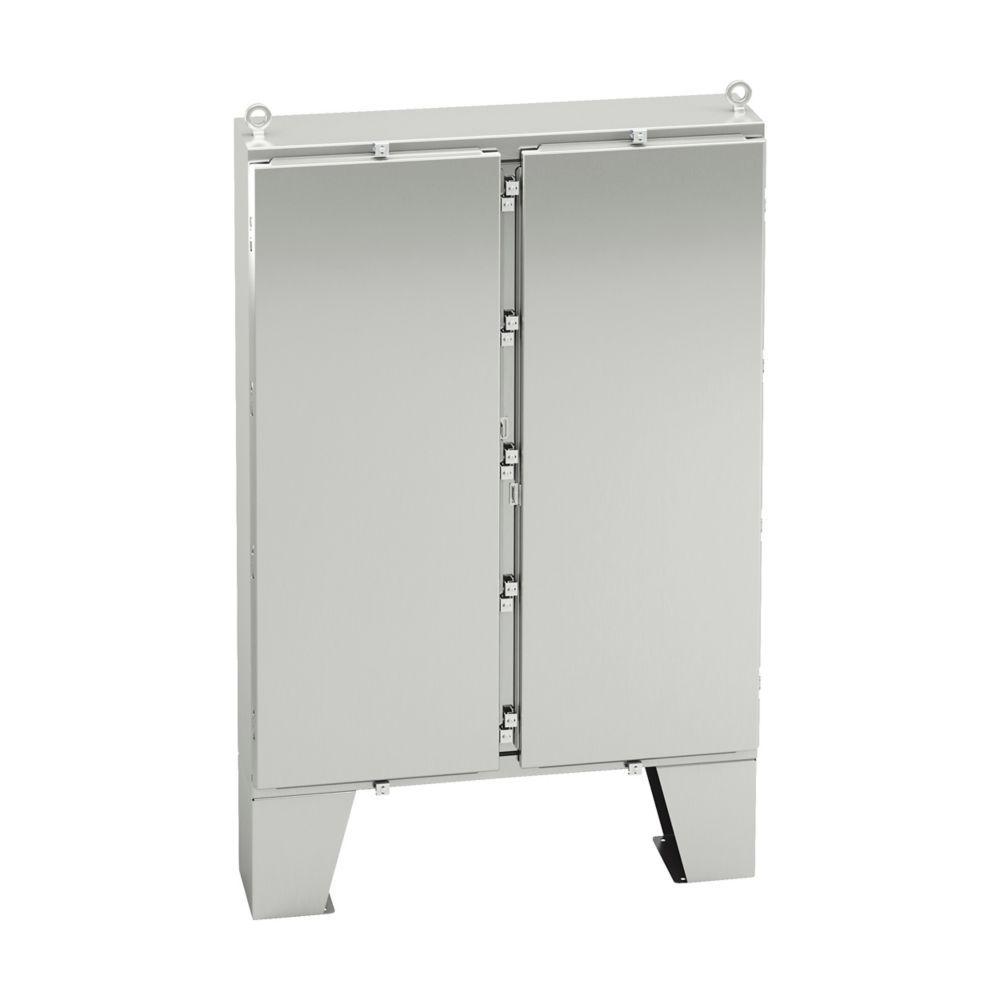

B-Line Ground Mount Enclosure, 2-Door, 48 in Width, 12 in D, 62 in Height, NEMA 4X/IP66, Hinged Cover, 43.87 in W x 55.87 in H Panel, Lock: Padlock Hasp, Floor/Leg Mount, 304 Stainless Steel, Brushed, Gray

• https://externalassets.unilogcorp.com/ASSETS/DOCUMENTS/ITEMS/EN/1086_SDFQRCC_Catalog.pdf https://www.iesbuy.com//ASSETS/DOCUMENTS/ITEMS/EN/https://externalassets.unilogcorp.com/ASSETS/DOCUMENTS/ITEMS/EN/1086_SDFQRCC_Catalog.pdf
• https://externalassets.unilogcorp.com/ASSETS/DOCUMENTS/ITEMS/EN/B-Line_624812-4XSFD_Specification_Sheet.pdf https://www.iesbuy.com//ASSETS/DOCUMENTS/ITEMS/EN/https://externalassets.unilogcorp.com/ASSETS/DOCUMENTS/ITEMS/EN/B-Line_624812-4XSFD_Specification_Sheet.pdf

• Enclosure and door are fabricated from 12 ga type 304 or type 316L stainless steel
• All continuous welded seams are finished smooth
• Doors are secured to the body with removable concealed stainless hinges and easy to remove stainless steel door clamps on three sides
• Modern bevel profile on hinge side of enclosure door
• Print pocket is provided
• Each door has a padlock hasp with sealing hole provision
• Door have a seamless poured in place gasket
• Ground stud provided on door and body
• Removable center post for complete front access
• Large lifting eyebolts are supplied
• Hole seals are provided to seal enclosure after removal of lifting eyebolts
• Mounting legs are provided for floor mounting
• Door and sides of body have a smooth #4 brushed finish
• Stainless door clamps
