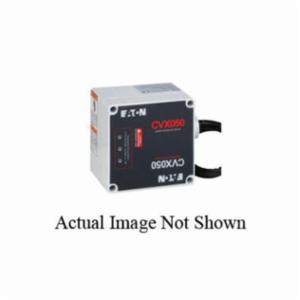

Eaton's CVX050 and CVX100 surge Protective devices (SPDs) ensure that a customer's investment in equipment and processes are protected from the damaging effects of voltage transients. Designed for installation on service entrance, branch panels, or individual equipment disconnects, the CVX series provides enhanced surge protection for mission-critical applications. Available in configurations and current capacities of 50 or 100 kA per phase.

Cutler-Hammer Surge Protective Device, Series: CVX, 380/400/415/440/480 VAC, 50/60 Hz, 3W+G Wires, 100 kA Short Circuit, 100 kJ/Ohm, 50/100 kA Peak Surge, 20 kA Nominal Discharge, Modes of Protection: 1100 L-L/550 L-G, 3, Environmental Conditions: 25 to 60 deg C Operating Temperature, NEMA 4X/IP56, Flush Mount, 3.55 in L x 4.75 in W x 5.67 in H

• IDW ITEM DOCUMENTS https://www.iesbuy.com//ASSETS/DOCUMENTS/ITEMS/EN/IDW_DOCUMENT_1485574547724.pdf
• IDW ITEM DOCUMENTS https://www.iesbuy.com//ASSETS/DOCUMENTS/ITEMS/EN/IDW_DOCUMENT_1485504836908.pdf

• Utilizes thermally protected metal oxide varistor (MOV) technology, which provides both high energy capacity and fail safe operation
• Threshold response network suppresses high energy impulse transients, providing robust protection
• NEMA 4X enclosure offers rugged construction and product durability as well as integral mounting configuration
• High intensity LED phase status indicators for easy readability
