EATON CH30B100D

Share Print

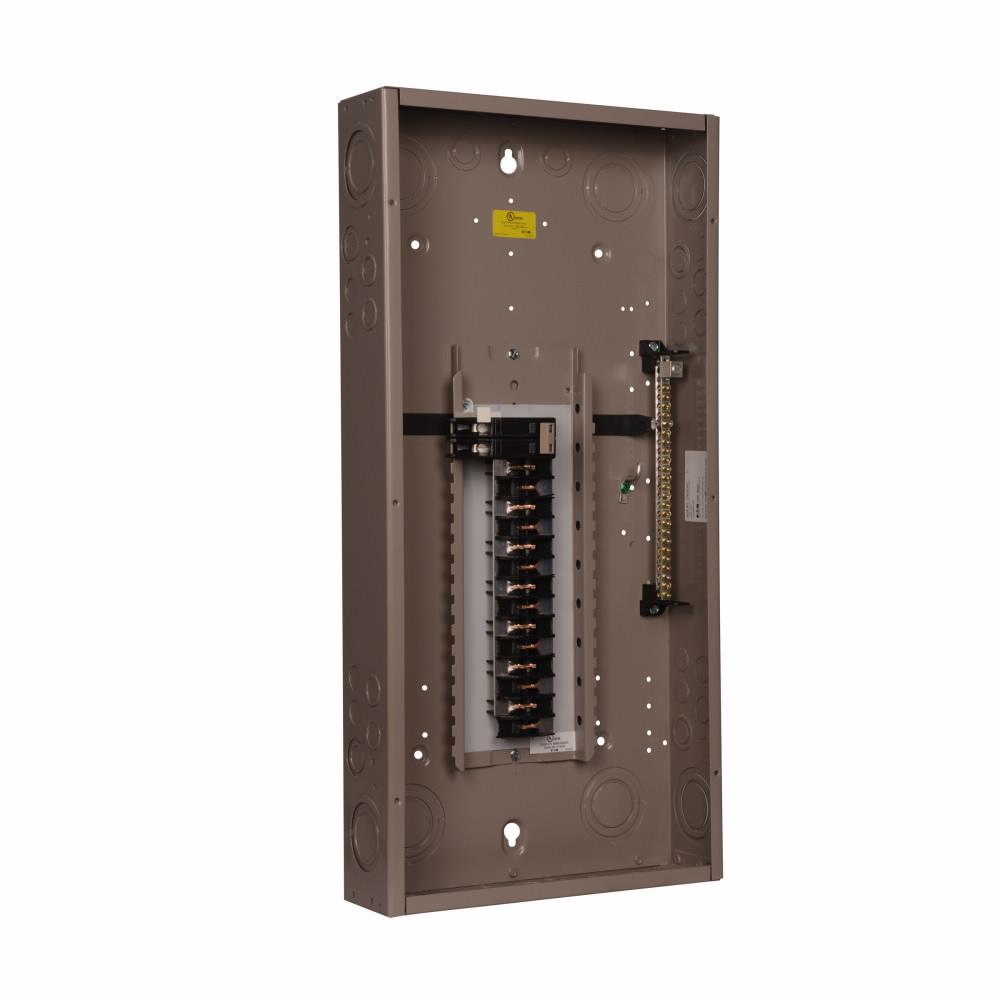

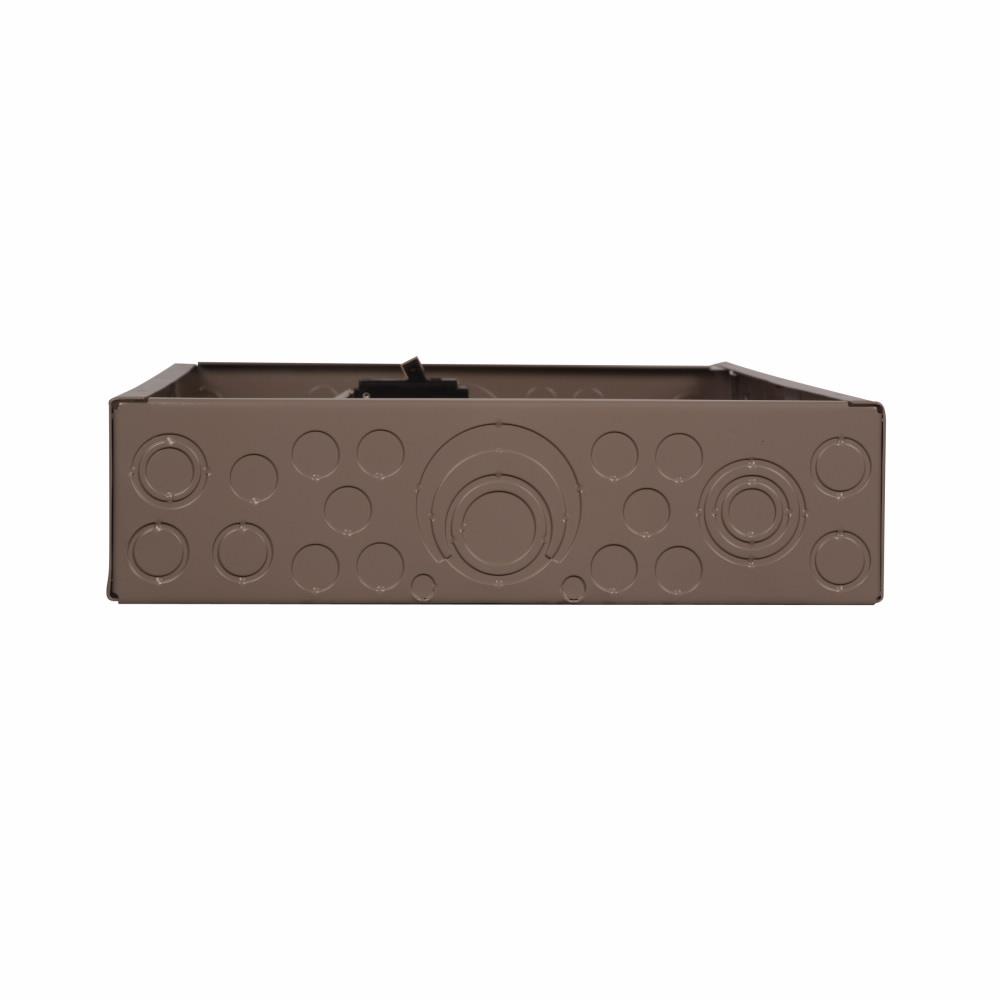

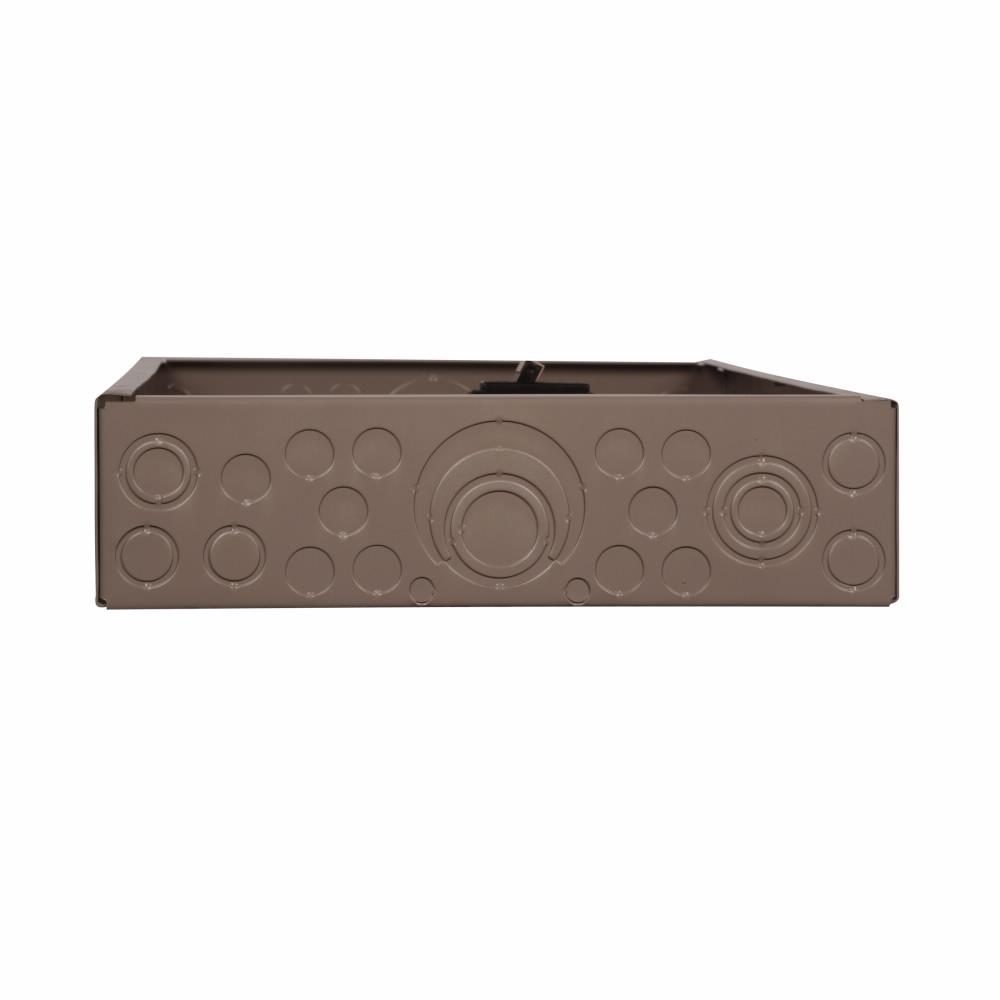

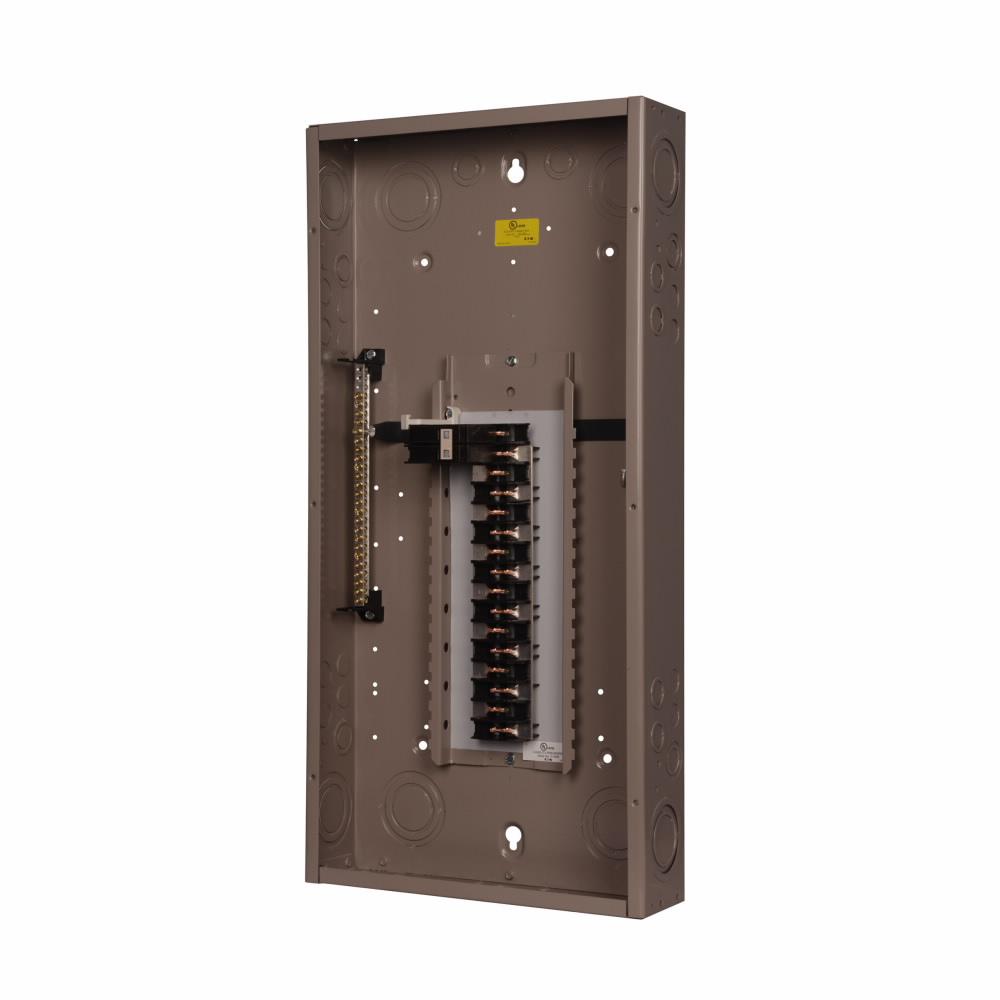

EATON CH30B100D 1-Phase Main Circuit Breaker Load Center, 120/240 VAC, 100 A, 30 Poles, 10 kA Interrupt

  • MPN: CH30B100D

  • IESPN: 23928

  • UPC: 782113097794

  • Min Order Qty: 1

  • Quantity Interval: 1

    • Availability: loading

    • Branch Availability
EATON CH30B100D

EATON CH 3/4 in load centers enclose CH breakers for power distribution and circuit protection in residential and light commercial applications. Also called a breaker box, electrical box or even a fuse box, the main function is to take electricity supplied by the utility and distribute it throughout the home to feed lights and receptacles. They are used on services providing no more than 240 VAC and are available with bus rated 40 to 600 A. Covers are available as surface, flush or combination.

EATON Main Circuit Breaker Load Center, 1-Phase, 120/240 VAC, 100 A, 30 Pole, 10 kA Interrupt, 30 Circuits, Type CH Breaker, 3-Wire Wiring Configuration, 30 Spaces, 6 to 1/0 AWG Wire, Surface Mounting, NEMA 1 Enclosure, NEMA D Enclosure Box, Metal Housing Material, 29.13 in L x 14.31 in W x 3.88 in H Dimensions

Type      1-Phase
Voltage Rating      120/240 VAC
Amperage Rating      100 A
Number of Poles      30
Interrupt Rating      10 kA
Number of Circuits      30
Breaker Type      Type CH
Wiring Configuration      3-Wire
Number of Spaces      30
Wire Size      6 to 1/0 AWG
Mounting Type      Surface
Enclosure Type      NEMA 1
Enclosure Box Size      NEMA D
Housing Material      Metal
Dimensions      29.13 in L x 14.31 in W x 3.88 in H
  • pdfBrochure https://www.iesbuy.com//ASSETS/DOCUMENTS/ITEMS/EN/IDW_DOCUMENT_1520570718145.pdf
  • pdfBrochure https://www.iesbuy.com//ASSETS/DOCUMENTS/ITEMS/EN/https://www.ideadigitalcontent.com/files/10964/ID-BRO-v1-BR003001EN.pdf
  • pdfCatalog https://www.iesbuy.com//ASSETS/DOCUMENTS/ITEMS/EN/Crouse_Hinds_CH125RB_Catalog.pdf
  • pdfCatalog-1 https://www.iesbuy.com//ASSETS/DOCUMENTS/ITEMS/EN/Crouse_Hinds_CH24NLPN125E_Catalog_1.pdf
  • pdfInstallation Instructions https://www.iesbuy.com//ASSETS/DOCUMENTS/ITEMS/EN/IDW_DOCUMENT_1520596369118.pdf
  • pdfInstallation Instructions https://www.iesbuy.com//ASSETS/DOCUMENTS/ITEMS/EN/https://www.ideadigitalcontent.com/files/10964/IL00300001Y.pdf
  • pdfSpecification Sheet https://www.iesbuy.com//ASSETS/DOCUMENTS/ITEMS/EN/IDW_DOCUMENT_1520600634543.pdf
  • pdfSpecification Sheet https://www.iesbuy.com//ASSETS/DOCUMENTS/ITEMS/EN/https://www.ideadigitalcontent.com/files/10964/ID-SPE-v1-CH30B100D.pdf
  • 1-piece silver flash plated copper bus provides superior conductivity throughout the entire product line
  • Steel backpan provides positive, reliable mounting
  • CH 150 to 225 a main breakers are rated 25 kAIC providing contractors with the highest interrupting rating main breaker in the industry
  • Unique sandalwood finish provides an esthetically appealing, scratch resistant powder coating
  • CH breakers include an industry exclusive "Trip to OFF" feature that allows a homeowner to easily identify a tripped circuit breaker
  • Factory pre attached neutral bonding strap
  • It accommodates copper/aluminum wire at 60/75 deg C
  • Copper bus housing
