Eaton B-Line series wiring troughs provide reliable environmental protection and are used to house runs of control and power cable in wiring, junction, pull and termination applications.

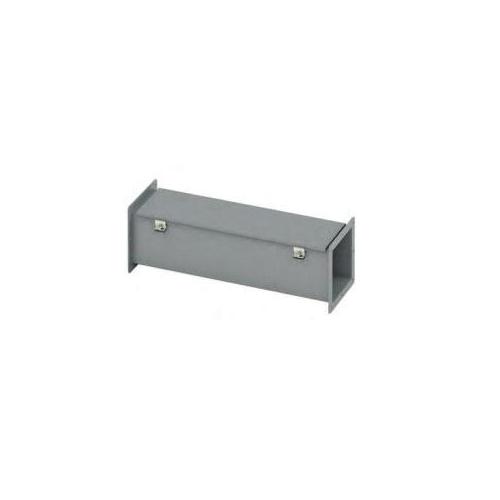

B-Line Wireway Nipple Section, Type 12 Hinged Feed-Through Screw Clamp, 4 x 4 in Size, For Use With: Wireway, Steel, Gray, Polyester Powder Coated, 6 in L x 4 in W x 4 in H Dimensions

• https://externalassets.unilogcorp.com/ASSETS/DOCUMENTS/ITEMS/EN/44120_HS_Catalog.pdf https://www.iesbuy.com//ASSETS/DOCUMENTS/ITEMS/EN/https://externalassets.unilogcorp.com/ASSETS/DOCUMENTS/ITEMS/EN/44120_HS_Catalog.pdf
• https://externalassets.unilogcorp.com/ASSETS/DOCUMENTS/ITEMS/EN/B-Line_44-12FN6_Specification_Sheet.pdf https://www.iesbuy.com//ASSETS/DOCUMENTS/ITEMS/EN/https://externalassets.unilogcorp.com/ASSETS/DOCUMENTS/ITEMS/EN/B-Line_44-12FN6_Specification_Sheet.pdf

• Wash and phosphate undercoat
• Hardware and latches are zinc plated
• Houses runs of control and power cable
• All continuous welded seams are finished smooth
• Wireway body and cover are fabricated from 14 ga steel
• Flanges are 10 ga steel
• External and internal edges are rounded to prevent injury or damage to cable
• Covers are secured to the wireway body with heavy duty hinges on one side and easy to operate screw clamps mounted to the opposite side
• Continuous flanged ends assure rigid connection of wireway and fitting
• Covers have a seamless poured in place gasket
• An oil-resistant gasket is provided for installation between flanges
