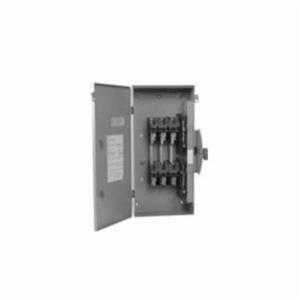

Cutler-Hammer Heavy Duty Safety Disconnect Switch, Non-Fused, 240 VAC/250 VDC, 200 A, 1 Phase, 2 Poles, 2 Wires, 100 kA Short Circuit, DPDT, NEMA 1, 39 in L x 21 in W x 9-1/2 in H, Steel, Painted

• Catalog https://www.iesbuy.com//ASSETS/DOCUMENTS/ITEMS/EN/Cutler_Hammer_DH162NRK_Catalog.pdf
• Catalog-1 https://www.iesbuy.com//ASSETS/DOCUMENTS/ITEMS/EN/Cutler_Hammer_DH162NRK_Catalog_1.pdf
• Installation Instructions-1 https://www.iesbuy.com//ASSETS/DOCUMENTS/ITEMS/EN/Cutler_Hammer_DH363FGK_Instruction_Sheet.pdf
• Specification Sheet-1 https://www.iesbuy.com//ASSETS/DOCUMENTS/ITEMS/EN/Cutler_Hammer_DT224UGK_Datasheet.pdf
• Video Link https://www.youtube.com/watch?v=evbbeaeAs9Y

• Clearly visible, palm fitting red handle allows users to easily see the handle position (ON or OFF) from a distance and provides for easy operation
• Two points of contact provide a positive open and close, easier operation and also help prevent contact burning for longer contact life
• Triple padlocking capability increases personnel safety
• Interlocking mechanism keeps the door closed when the handle is in the on position to maximize safety, although there is a built-in defeater mechanism for user access when necessary
• Clear line shield protects against accidental contact with energized parts and the probe holes enable the user to test if the line side is energized without removing the shield
• 100% rated device means the switch may be used continuously up to its rated current
• Meets stringent UL 98 standards for safety, durability and reliability
