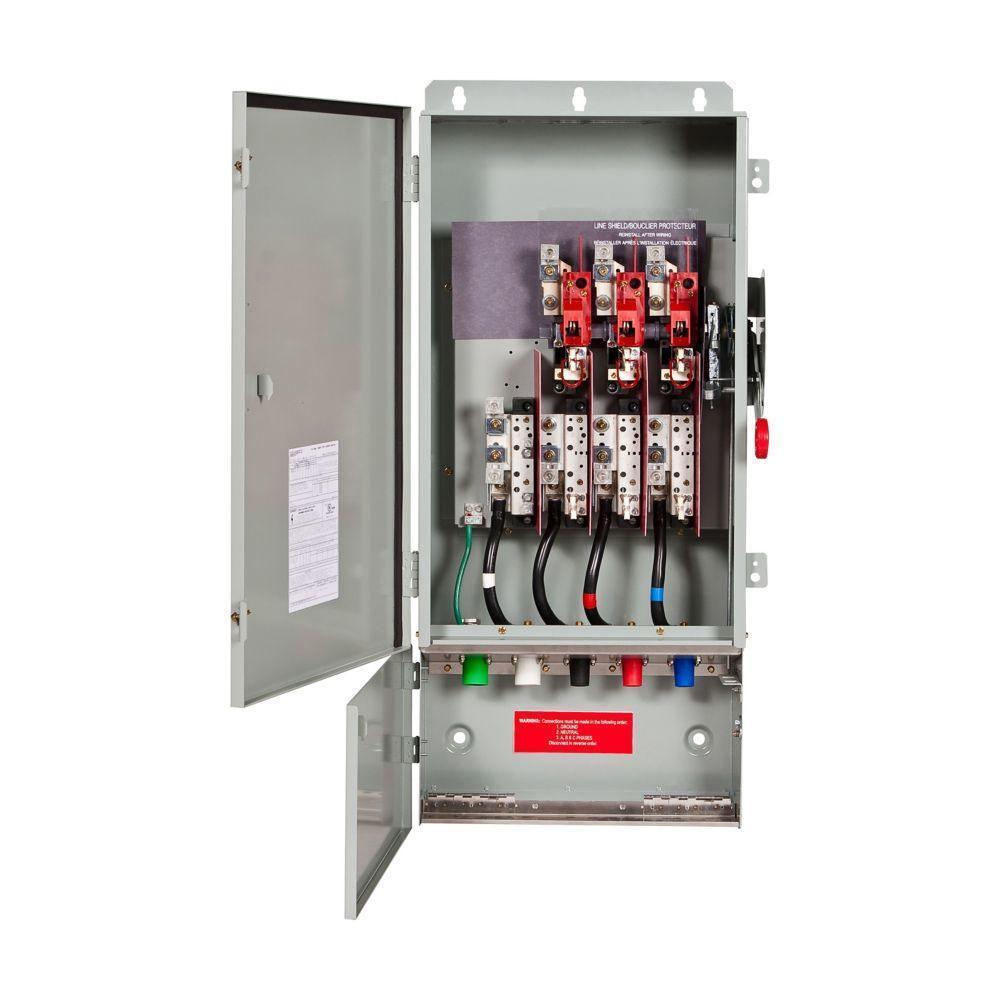

Eaton's 2017 NEC 702.12(C) compliant quick connect safety switches provide a convenient and safe way to connect and disconnect portable equipment. Switches are available in 100 A-1200 A, single throw and double throw, fusible and non-fusible configurations. The load-side terminals are factory-wired to Cam-Lok/Posi-Lok receptacles located behind an interlocked door. For single-throw generator switch applications, the receptacles are factory wired to the line-side terminals.

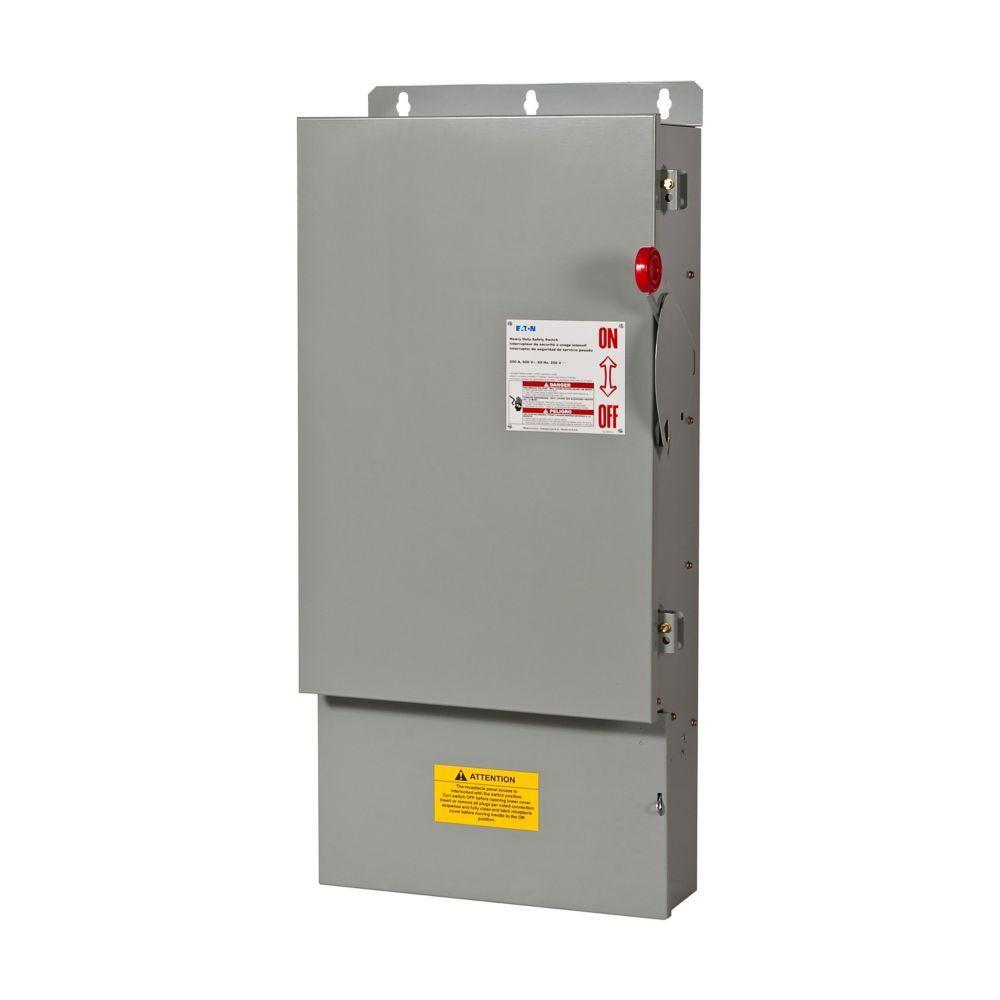

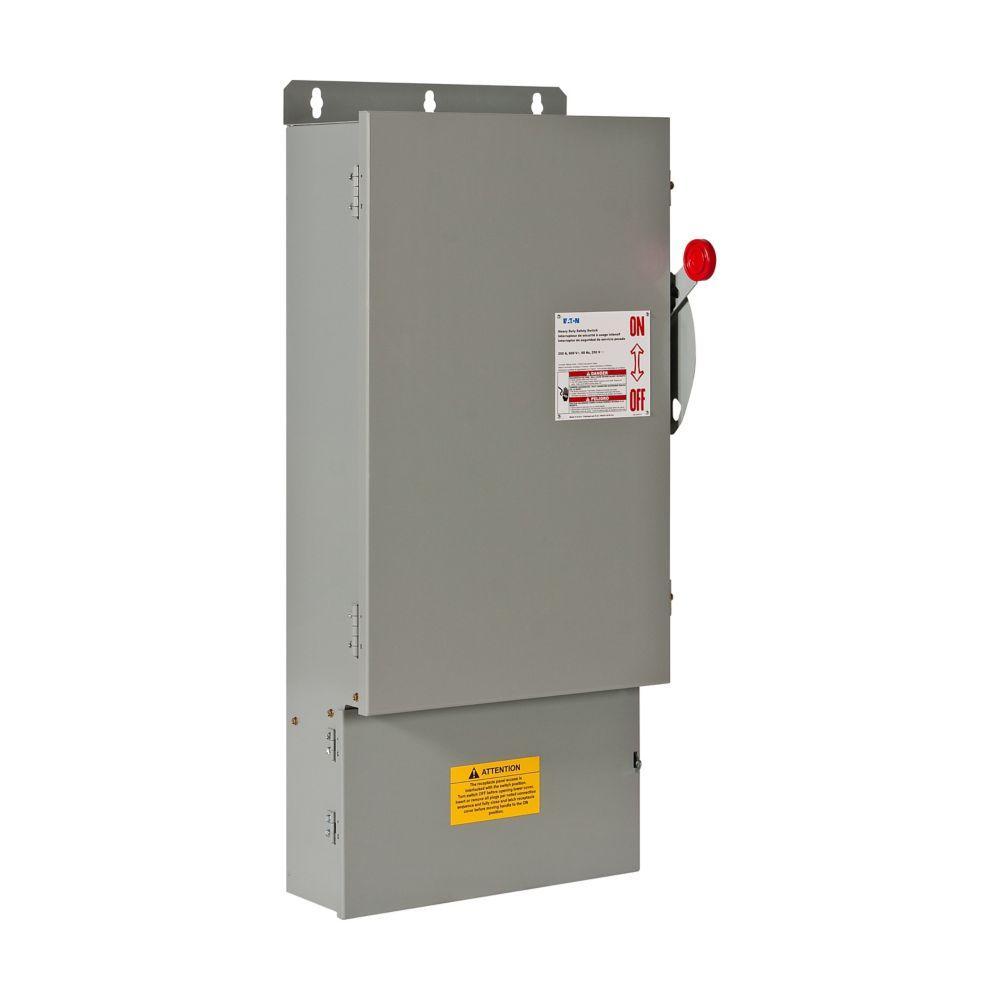

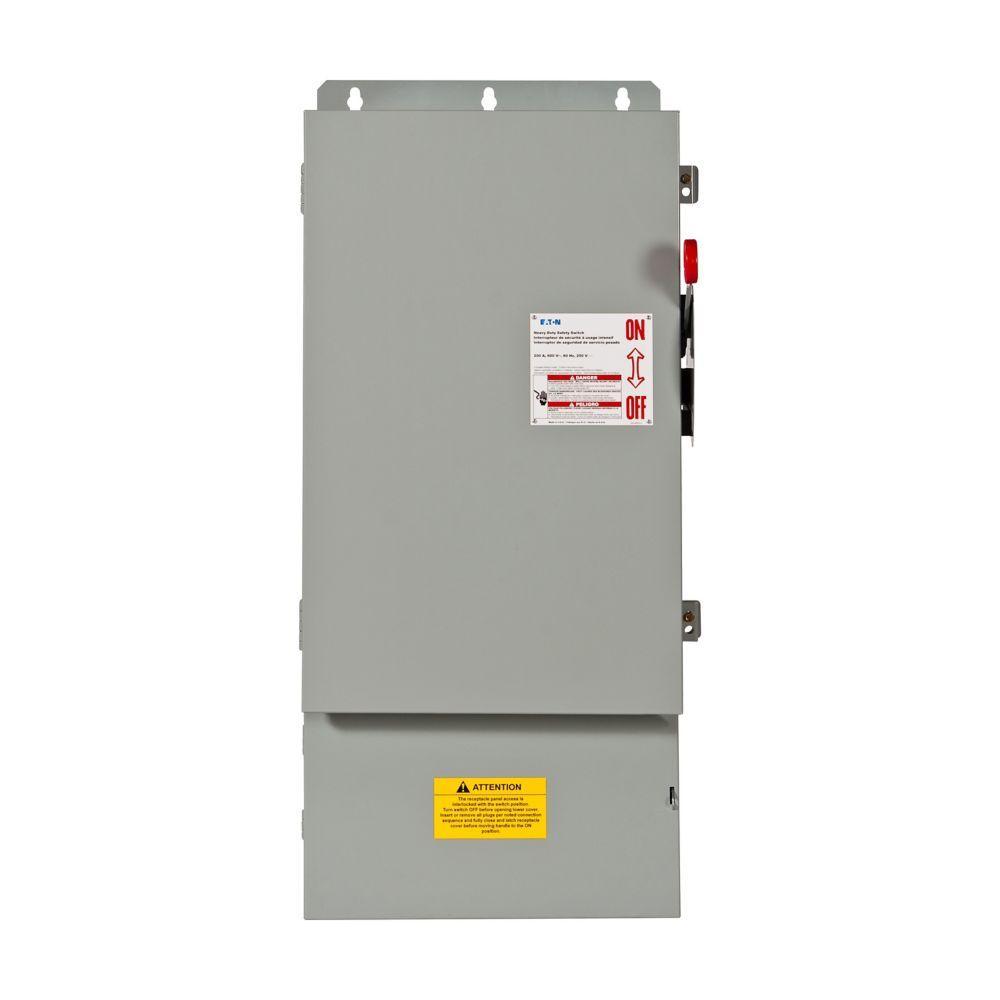

EATON Safety Switch, Low Voltage Heavy Duty Non-Fusible, Series: K Series, 600 VAC, 200 A, 250 hp at 240 VAC, 500 hp at 480, 600 VAC, 4 Pole, 10 kA Short Circuit, Single Throw Actuator, NEMA 3R Enclosure, Box Lug/Quick-Connect Terminal, 13.68 in L x 18.57 in W x 40.89 in H Dimensions

• https://externalassets.unilogcorp.com/ASSETS/DOCUMENTS/ITEMS/EN/V48M47T30_Catalog.pdf https://www.iesbuy.com//ASSETS/DOCUMENTS/ITEMS/EN/https://externalassets.unilogcorp.com/ASSETS/DOCUMENTS/ITEMS/EN/V48M47T30_Catalog.pdf
• https://externalassets.unilogcorp.com/ASSETS/DOCUMENTS/ITEMS/EN/EATON_DH464URKSNLCR_Specification_Sheet.pdf https://www.iesbuy.com//ASSETS/DOCUMENTS/ITEMS/EN/https://externalassets.unilogcorp.com/ASSETS/DOCUMENTS/ITEMS/EN/EATON_DH464URKSNLCR_Specification_Sheet.pdf
• VIDEO LINK https://www.youtube.com/watch?v=U4DudPZw18A

• Clearly visible palm fitting red handle allows users to easily see the handle position (On/Off) from a distance and provides for easy operation
• Two points of contact provide a positive open and close, easier operation and also help prevent contact burning for longer contact life
• Triple padlocking capability increases personnel safety
• Interlocking mechanism keeps the door closed when the handle is in the On position to maximize safety, although there is a built-in defeater mechanism for user access when necessary
• Clear line shield protects against accidental contact with energized parts and the probe holes enable the user to test if the line side is energized without removing the shield
• 100% rated device means the switch may be used continuously up to its rated current
