This attractive, functional line of pushbuttons features a space-saving construction that enables fast assembly. The complete illuminated M22 line offers LED light units to ensure high-quality brightness and up to 100,000 hours of illumination. Because of the rugged design of these pushbuttons, most operators and contact blocks exceed five million mechanical operations.

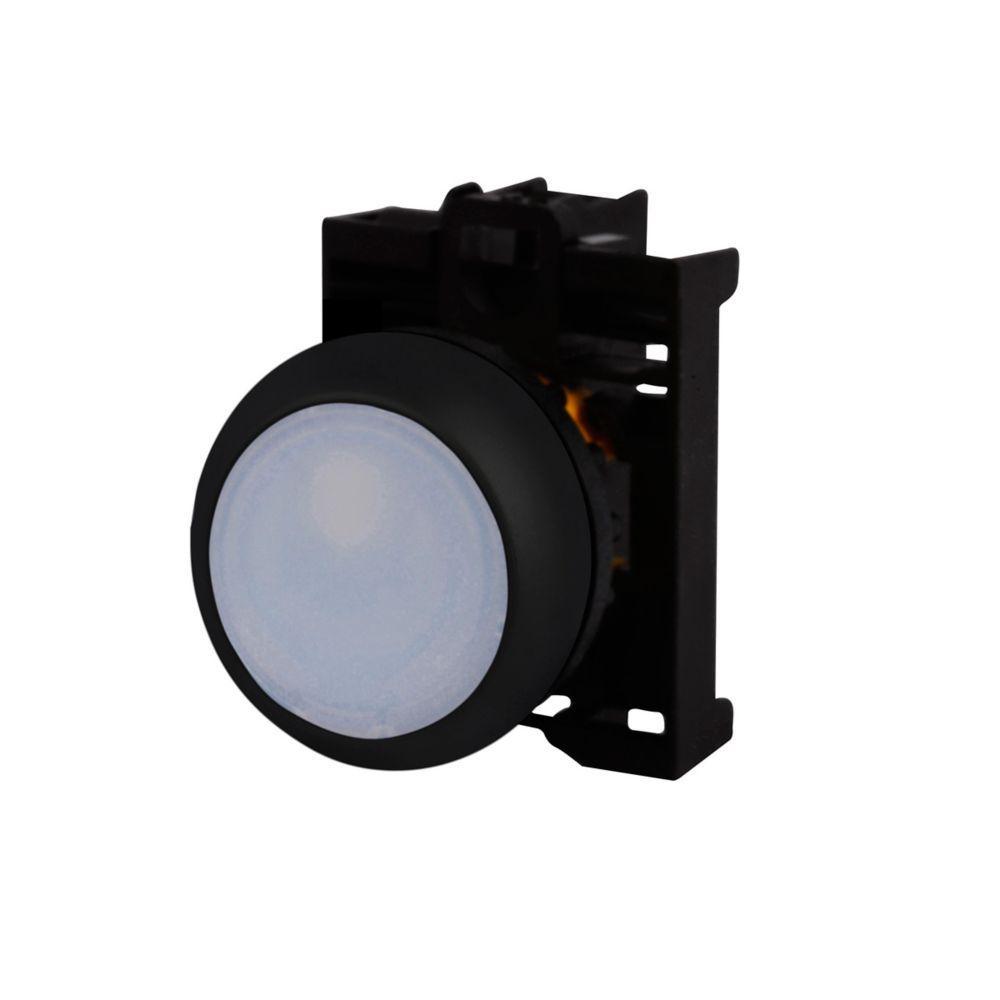

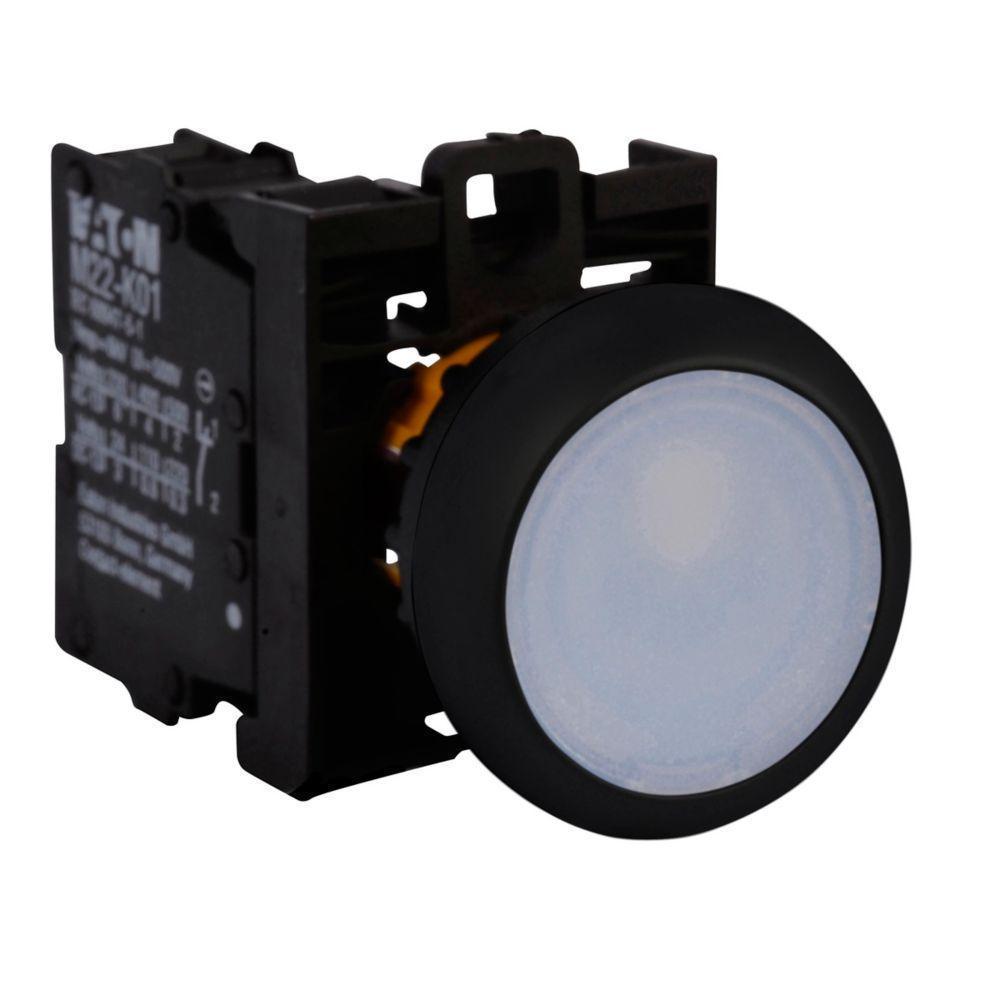

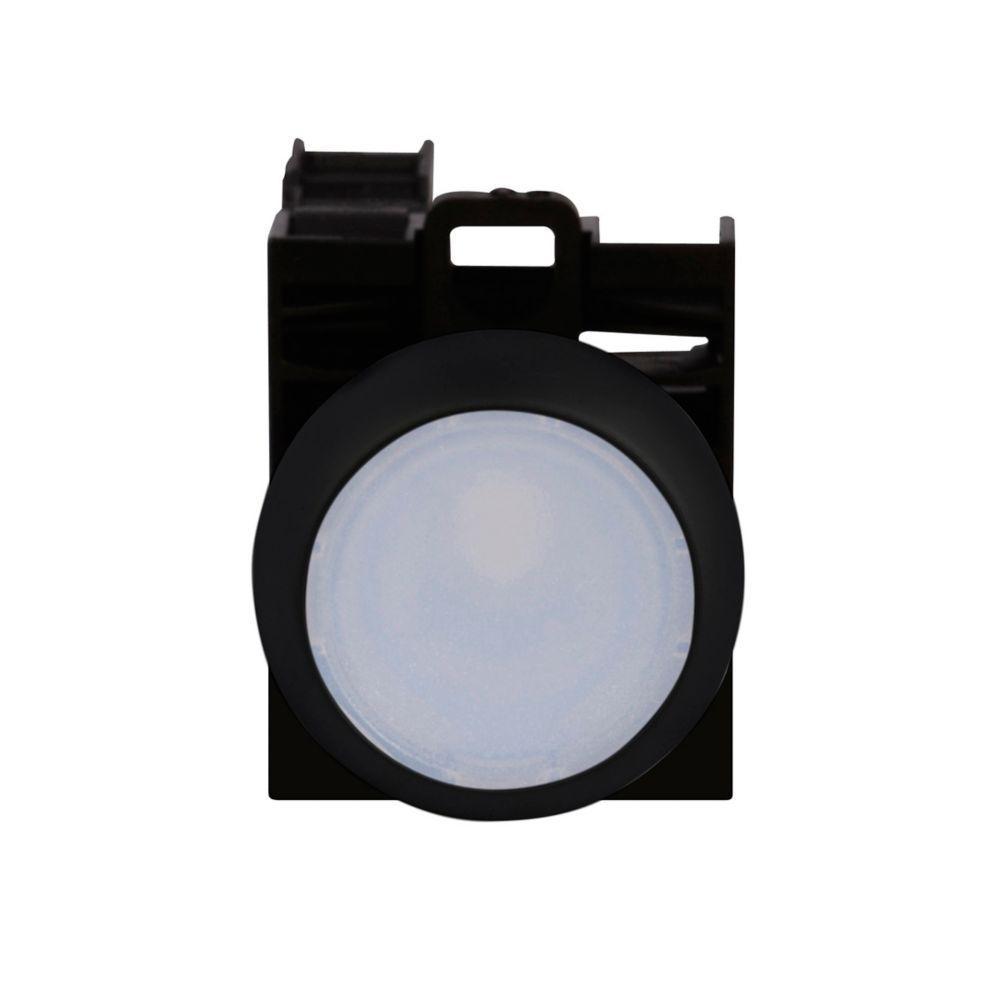

EATON RMQ-Titan® Illuminated Pushbutton, Modular, Series: M22, 22.5 mm Size, 1NO Contact Configuration, Momentary Contact Mode, LED Lamp, Bezel/Housing: Black Bezel, Flush Button Actuator, NEMA 4X/13/IP67/IP69K Enclosure, White, Environmental Conditions: -13 to 158 deg F Ambient Temperature

• https://externalassets.unilogcorp.com/ASSETS/DOCUMENTS/ITEMS/EN/M22_DDL_GR_GB1_GB0_Installation_Manual.pdf https://www.iesbuy.com//ASSETS/DOCUMENTS/ITEMS/EN/https://externalassets.unilogcorp.com/ASSETS/DOCUMENTS/ITEMS/EN/M22_DDL_GR_GB1_GB0_Installation_Manual.pdf
• https://externalassets.unilogcorp.com/ASSETS/DOCUMENTS/ITEMS/EN/M22_DDL_GR_GB1_GB0_User_Manual.pdf https://www.iesbuy.com//ASSETS/DOCUMENTS/ITEMS/EN/https://externalassets.unilogcorp.com/ASSETS/DOCUMENTS/ITEMS/EN/M22_DDL_GR_GB1_GB0_User_Manual.pdf
• https://externalassets.unilogcorp.com/ASSETS/DOCUMENTS/ITEMS/EN/EATON_M22S-DL-W-K10-230W_Specification_Sheet.pdf https://www.iesbuy.com//ASSETS/DOCUMENTS/ITEMS/EN/https://externalassets.unilogcorp.com/ASSETS/DOCUMENTS/ITEMS/EN/EATON_M22S-DL-W-K10-230W_Specification_Sheet.pdf

• Field convertible from maintained to momentary
• Customizable laser engraving on all buttons
• LED offering only for improved brightness quality and up to 100000 hours of operation
• More than 5 million mechanical operations on momentary and 1 million on maintained pushbuttons
• Modular construction makes assembly fast and simplifies stocking of components and complete devices
• Capable of communicating via ASi protocol with ASi adapter modules
• 85 to 264 VAC LED light unit
