This attractive, functional line of pushbuttons features a space-saving construction that enables fast assembly. The complete illuminated M22 line offers LED light units to ensure high-quality brightness and up to 100,000 hours of illumination. Because of the rugged design of these pushbuttons, most operators and contact blocks exceed five million mechanical operations.

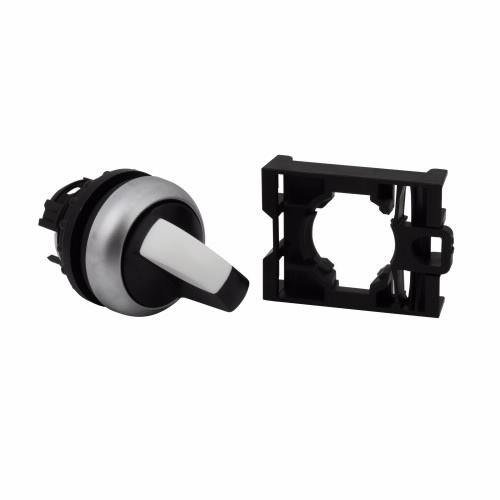

Cutler-Hammer Selector Switch Operator, Modular, Series: M22, 22.5 mm, Maintained Contact Mode, Knob Operator, 2 Positions, 60 deg Left-Right Throw, NEMA 4X/13/IP66, Bezel/Housing: Silver

• IDW ITEM DOCUMENTS https://www.iesbuy.com//ASSETS/DOCUMENTS/ITEMS/EN/http://www.ideadigitalcontent.com/files/10964/ID-BRO-v1-CA08100008E.pdf
• Catalog https://www.iesbuy.com//ASSETS/DOCUMENTS/ITEMS/EN/Cutler_Hammer_E30KA100_Catalog.pdf
• IDW ITEM DOCUMENTS https://www.iesbuy.com//ASSETS/DOCUMENTS/ITEMS/EN/IDW_DOCUMENT_1511875256927.pdf
• Specification Sheet https://www.iesbuy.com//ASSETS/DOCUMENTS/ITEMS/EN/Cutler_Hammer_M22_WKV_Data_Sheet.pdf
• IDW ITEM DOCUMENTS https://www.iesbuy.com//ASSETS/DOCUMENTS/ITEMS/EN/http://www.ideadigitalcontent.com/files/10964/ID-SPE-v1-TD04716001E.pdf
• IDW ITEM DOCUMENTS http://www.eaton.com/ecm/idcplg?IdcService=GET_FILE&allowInterrupt=1&RevisionSelectionMethod=LatestReleased&noSaveAs=0&Rendition=Primary&dDocName=TD04716001E
• IDW ITEM DOCUMENTS http://www.eaton.com/ecm/idcplg?IdcService=GET_FILE&allowInterrupt=1&RevisionSelectionMethod=LatestReleased&noSaveAs=0&Rendition=Primary&dDocName=M22(S)(M)-WKV.dxf_27707
• Video Link https://www.youtube.com/watch?v=_nJTR29VEFM

• Non-illuminated
• 100000 hr of operating cycles
• 1.17 in L x 1.17 in W x 1.06 in H dimension
• Our M22 now offers an attractive chrome metal bezel that will enhance appeal to your 22mm pushbutton applications
• Most pushbutton operators and contact blocks exceed 5 million mechanical operations
• This highly versatile line features field-convertible functions and customized laser engraving capabilities
