Cutler-Hammer M22S-D-R-K01

Share Print

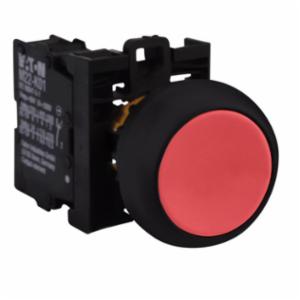

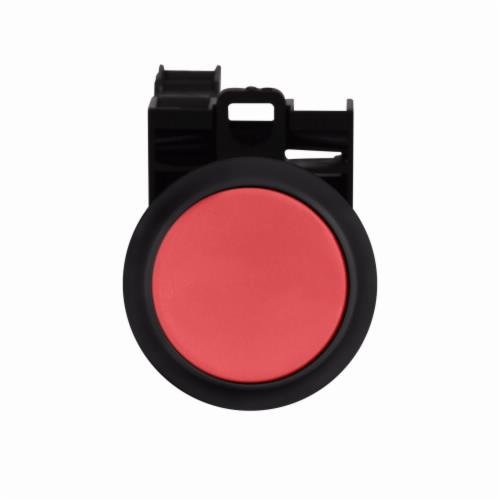

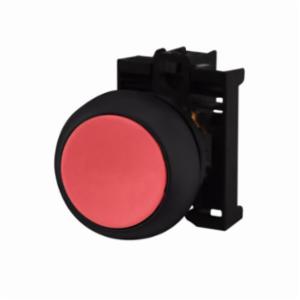

Cutler-Hammer M22 Series Non-Illuminated Pushbutton, 22.5 mm, 1NC, Red

  • MPN: M22S-D-R-K01

  • IESPN: 207531

  • UPC: 786685275574

  • Min Order Qty: 1

  • Quantity Interval: 1

    • Availability: loading

    • Branch Availability
Cutler-Hammer M22S-D-R-K01

Cutler-Hammer Non-Illuminated Pushbutton, Series: M22 Series, 22.5 mm, 1NC, Momentary Contact Mode, 10 A at 600 VAC/5 A at 250 VDC Contact, Bezel/Housing: Black, Button/Flush, Screw, NEMA 4X/13/IP67/IP69K, Red

Series      M22 Series
Size      22.5 mm
Contact Configuration      1NC
Contact Mode      Momentary
Contact Rating      10 A at 600 VAC/5 A at 250 VDC
Bezel/Housing      Black
Actuator      Button/Flush
Connection Type      Screw
Enclosure Type      NEMA 4X/13/IP67/IP69K
Color      Red
Warranty      1 Year
  • pdfIDW ITEM DOCUMENTS https://www.iesbuy.com//ASSETS/DOCUMENTS/ITEMS/EN/http://www.ideadigitalcontent.com/files/10964/ID-BRO-v1-CA08100008E.pdf
  • pdfIDW ITEM DOCUMENTS https://www.iesbuy.com//ASSETS/DOCUMENTS/ITEMS/EN/IDW_DOCUMENT_1511875256927.pdf
  • pdfSpecification Sheet https://www.iesbuy.com//ASSETS/DOCUMENTS/ITEMS/EN/Cutler_Hammer_M22S_D_R_K01_Datasheet.pdf
  • pdfIDW ITEM DOCUMENTS https://www.iesbuy.com//ASSETS/DOCUMENTS/ITEMS/EN/http://www.ideadigitalcontent.com/files/10964/ID-SPE-v1-M22S-D-R-K01.pdf
  • videoIDW ITEM DOCUMENTS http://www.eaton.com/ecm/idcplg?IdcService=GET_FILE&allowInterrupt=1&RevisionSelectionMethod=LatestReleased&noSaveAs=0&Rendition=Primary&dDocName=PA04704002E
  • videoVideo Link https://www.youtube.com/watch?v=_nJTR29VEFM
  • 1.46 in L x 1.18 in W x 2.16 in H
  • Red button
