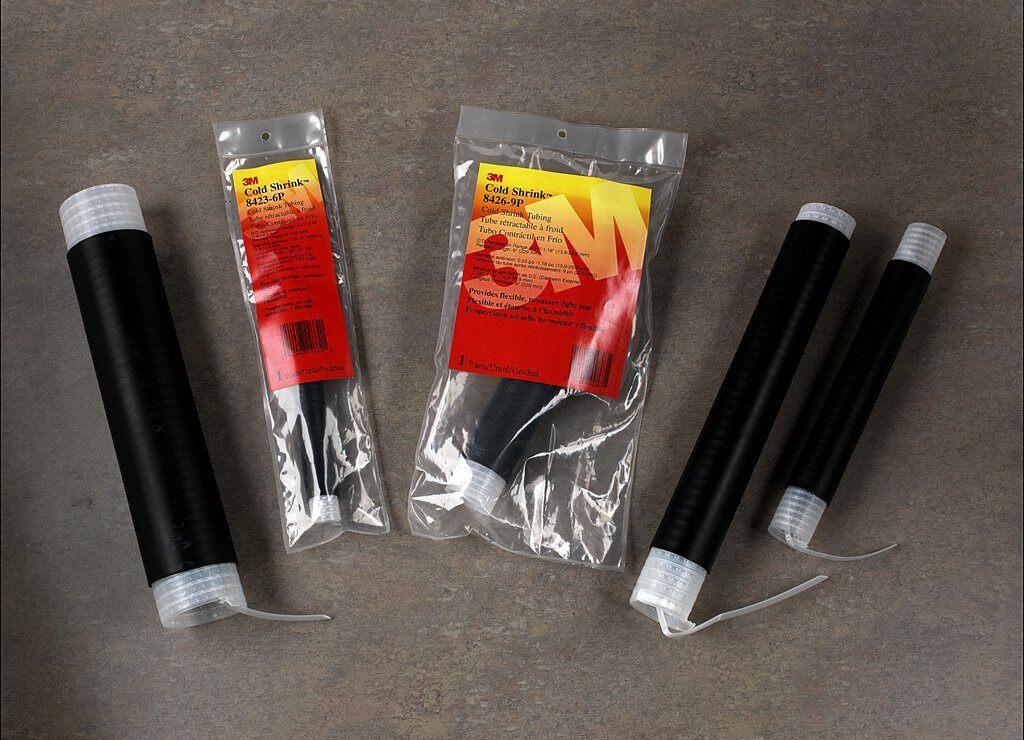

3M™ Cold Shrink Connector Insulators 8420 and 8430 Series are EPDM tubes designed using a unique Cold Shrink delivery system. Products are supplied pre-stretched on a removable core for efficiency and easy of installation. Removal of the core (unwind) after positioning allows the tube to shrink into position forming a moisture-tight seal. The live memory action of the specially formulated material ensures a permanent, durable environmental seal and insulation.

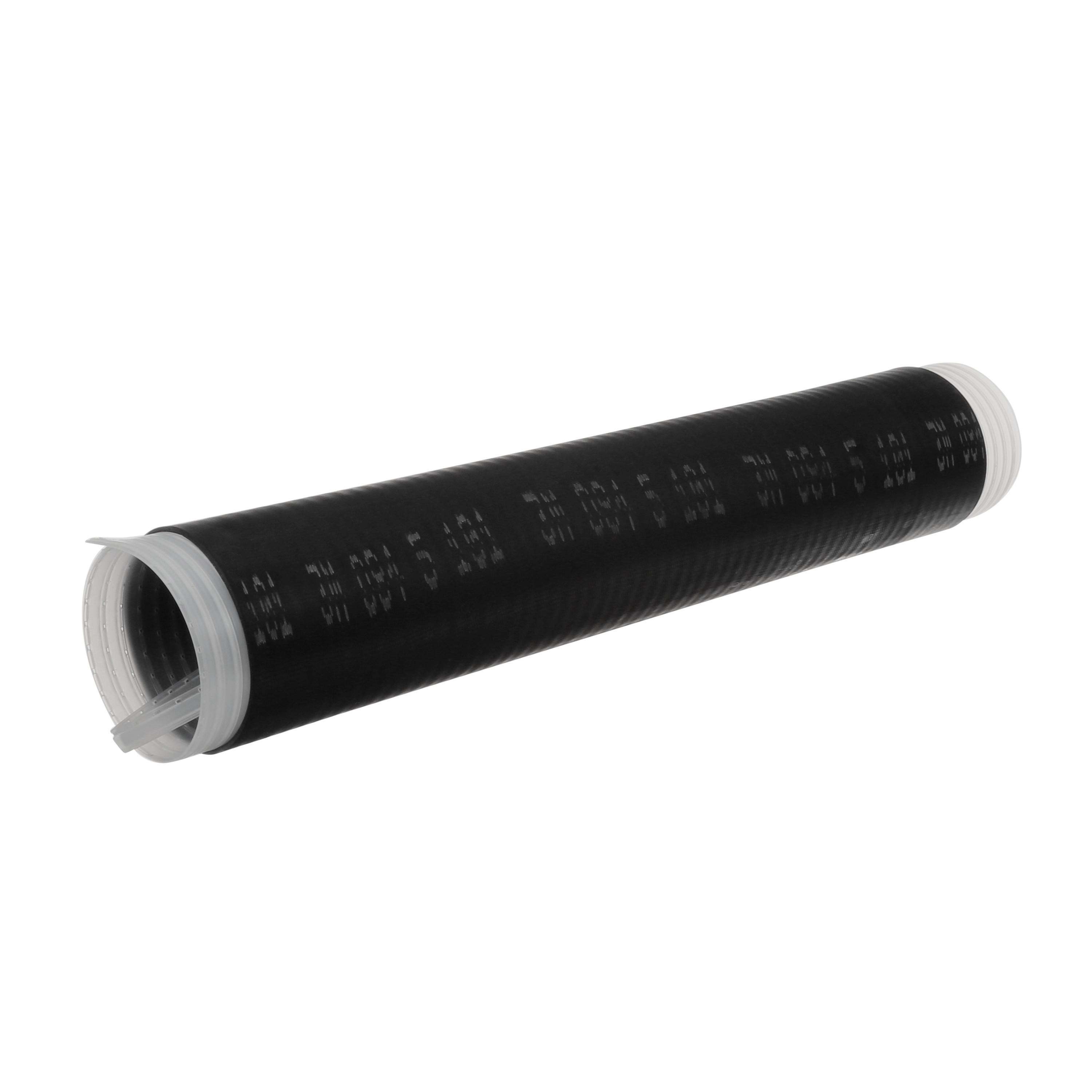

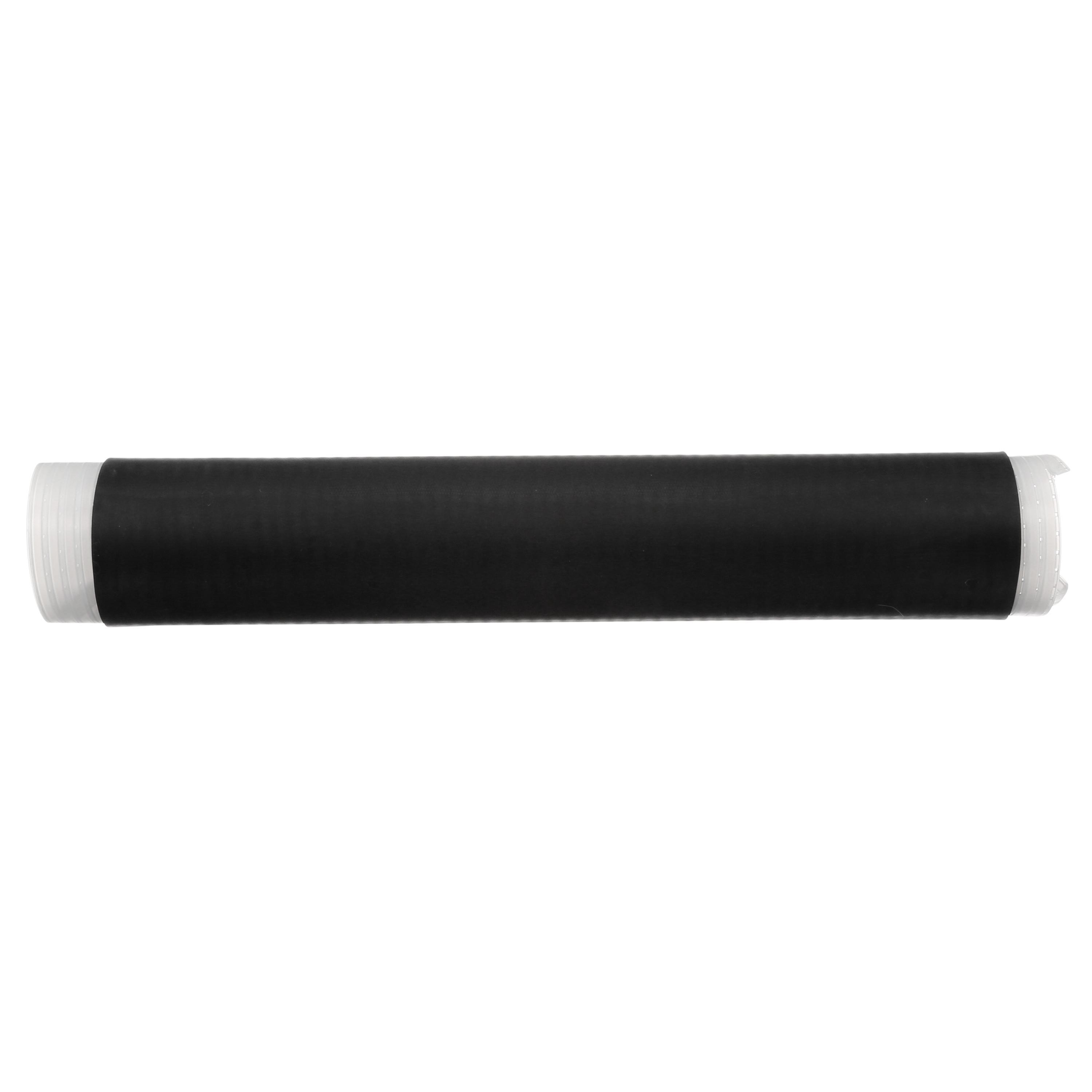

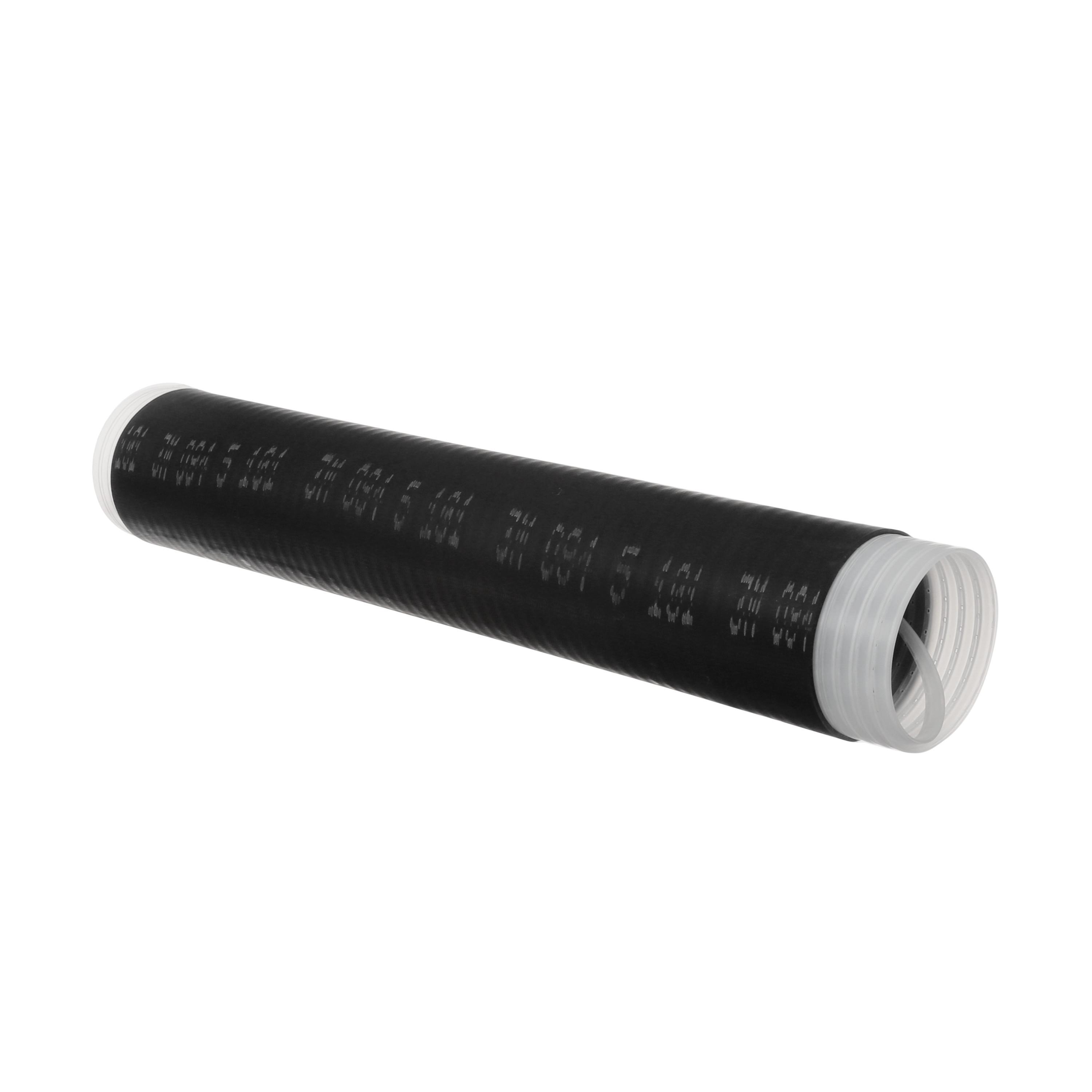

3M™, 7000031458, Insulator, Cold Shrink, Series: 8420, 67.8 mm Diameter Minimum, 32.2 mm Diameter Maximum, 1400 psi Tensile Strength, Elongation: 7.5, 365 V/mil Dielectric Strength, EPDM Rubber Insulation, Black

• https://externalassets.unilogcorp.com/ASSETS/DOCUMENTS/ITEMS/EN/IDW_DOCUMENT_77d48e79813b7ee1e476dec4a4100f64a81dcbbaeb154b4a1d4de374ba53ba28.pdf https://www.iesbuy.com//ASSETS/DOCUMENTS/ITEMS/EN/https://externalassets.unilogcorp.com/ASSETS/DOCUMENTS/ITEMS/EN/IDW_DOCUMENT_77d48e79813b7ee1e476dec4a4100f64a81dcbbaeb154b4a1d4de374ba53ba28.pdf
• https://externalassets.unilogcorp.com/ASSETS/DOCUMENTS/ITEMS/EN/IDW_DOCUMENT_dbcdd296a8e947aabc80cbb392c2b75076b34dbf903c357500b17c71cf1d20fb.pdf https://www.iesbuy.com//ASSETS/DOCUMENTS/ITEMS/EN/https://externalassets.unilogcorp.com/ASSETS/DOCUMENTS/ITEMS/EN/IDW_DOCUMENT_dbcdd296a8e947aabc80cbb392c2b75076b34dbf903c357500b17c71cf1d20fb.pdf
• https://externalassets.unilogcorp.com/ASSETS/DOCUMENTS/ITEMS/EN/IDW_DOCUMENT_488b9f8e0da05715ee0459eb0f04af2eb14a42f4492db1301bb1aebb5a47fd6c.pdf https://www.iesbuy.com//ASSETS/DOCUMENTS/ITEMS/EN/https://externalassets.unilogcorp.com/ASSETS/DOCUMENTS/ITEMS/EN/IDW_DOCUMENT_488b9f8e0da05715ee0459eb0f04af2eb14a42f4492db1301bb1aebb5a47fd6c.pdf

• Simple installation, requires no tools and accommodates a wide range of cable sizes
• Copper conductor with polyolefin foam
• No torches or heat required, good thermal stability
• Seals tight, retains its resiliency and pressure even after prolonged years of aging and exposure
• Excellent wet electrical properties
• Tough rubber formulation withstands backfilling
• Water-resistant, no mastic or tape required to seal
• Resists acids and alkalis, resists ozone
• Physical protection and moisture sealing for air insulated connectors and lugs such as spacer cable and lug connections to bus bar
• Relocation of service, dig-in repairs, sheath repairs, environmental sealing for communication and other non-electrical applications
• Unishield®, wire shield, non-shielded, tape shield cable
• 18 in relaxed tube length, 14 in max connector length
• 900 to 1000 kcmil conductor size
• Sealing of terminal lug barrels, conduit couplings and conduit-to-cable breakouts
• Withstands temperatures of -40 to 194 deg f (-40 to 90 deg c)
• Made of EPDM rubber which contains no chlorides or sulfur
