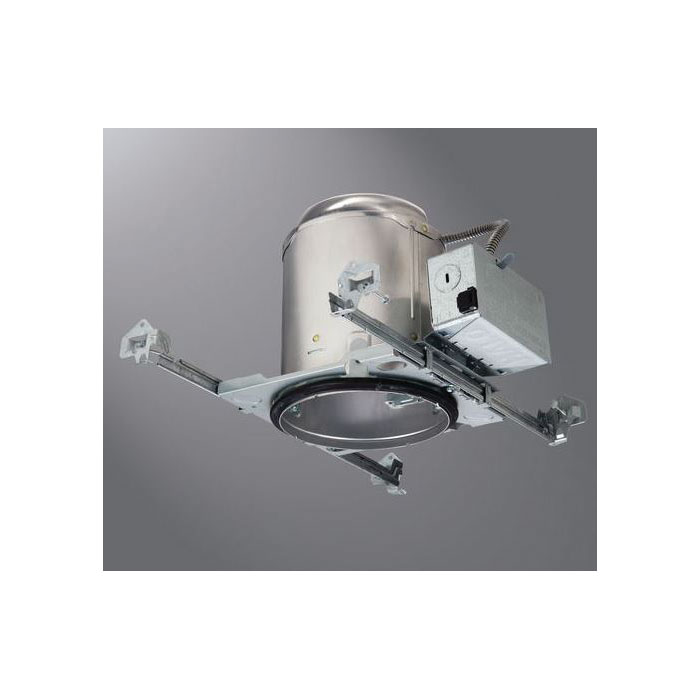

The E5ICAT is a compact and efficient recessed housing optimized and listed for EISA compliant tungsten-halogen lamps, as well as incandescent, CFL and LED lamps. Housing is suitable for residential or light commercial applications. For installation in insulated ceilings and non-insulated ceilings with airtight code compliant construction. Use with a variety of trims and finishes to create different lighting effects or to match any decor. May be retrofit with compatible Halo LED lighting systems.

Halo, E5ICAT, Recessed Lighting Housing, New Construction, Series: E5, 120 VAC, 5-3/4 in Ceiling Opening, CFL/PAR20/PAR30 Halogen/Incandescent/LED Lamp, 75 W Lamp, IC Insulation, Ceiling Mounting, For Use With: Halo Recessed Downlight Fixture, 5 in Diameter, 7-1/4 in Height, 10-1/2 in Width, 9-7/8 in Depth, Die Cast Aluminum Housing Material

• https://externalassets.unilogcorp.com/ASSETS/DOCUMENTS/ITEMS/EN/IDW_DOCUMENT_e1ed8316799fdd9df0e93ba27c9bbec2c055e6f22b044a35192a8289710f3cc8.pdf https://www.iesbuy.com//ASSETS/DOCUMENTS/ITEMS/EN/https://externalassets.unilogcorp.com/ASSETS/DOCUMENTS/ITEMS/EN/IDW_DOCUMENT_e1ed8316799fdd9df0e93ba27c9bbec2c055e6f22b044a35192a8289710f3cc8.pdf
• https://externalassets.unilogcorp.com/ASSETS/DOCUMENTS/ITEMS/EN/IDW_DOCUMENT_f2acd8a55ebb1b855ee16dec986fea2f6603225f4d8bacecbcbf6a30fb5fef70.pdf https://www.iesbuy.com//ASSETS/DOCUMENTS/ITEMS/EN/https://externalassets.unilogcorp.com/ASSETS/DOCUMENTS/ITEMS/EN/IDW_DOCUMENT_f2acd8a55ebb1b855ee16dec986fea2f6603225f4d8bacecbcbf6a30fb5fef70.pdf
• https://externalassets.unilogcorp.com/ASSETS/DOCUMENTS/ITEMS/EN/IDW_DOCUMENT_9b73fe1df19cae6c90e365ec21d43962b9905d8459558e63f00b1c567b2c4d48.pdf https://www.iesbuy.com//ASSETS/DOCUMENTS/ITEMS/EN/https://externalassets.unilogcorp.com/ASSETS/DOCUMENTS/ITEMS/EN/IDW_DOCUMENT_9b73fe1df19cae6c90e365ec21d43962b9905d8459558e63f00b1c567b2c4d48.pdf
• https://externalassets.unilogcorp.com/ASSETS/DOCUMENTS/ITEMS/EN/IDW_DOCUMENT_5406c0f66a3cfff9d68250c585ab0aea7cbdf72c085dfb11c706f7f17d368d74.pdf https://www.iesbuy.com//ASSETS/DOCUMENTS/ITEMS/EN/https://externalassets.unilogcorp.com/ASSETS/DOCUMENTS/ITEMS/EN/IDW_DOCUMENT_5406c0f66a3cfff9d68250c585ab0aea7cbdf72c085dfb11c706f7f17d368d74.pdf

• For use in insulated ceilings
• Air-Tite™ exclusive housing gasket
• Hanger bars feature Pass-N-Thru™ tool-less shortening
• Socket bracket adjusts lamp to various trim styles and designs
• AIR-TITE® tested per ASTM E 283
• Q-channel interlocking hanger bars
• Hinged junction box with Slide-N-Side™
