The Atlas-X1™ Cat 6a component rated UTP QuickPort® connector supports 10GBASE-T networks. The connector is part of a complete Atlas-X1™ Cat 6a UTP system, ideal for the most demanding mission critical network applications. The connector supports emerging technologies and will easily adapt to network trends.

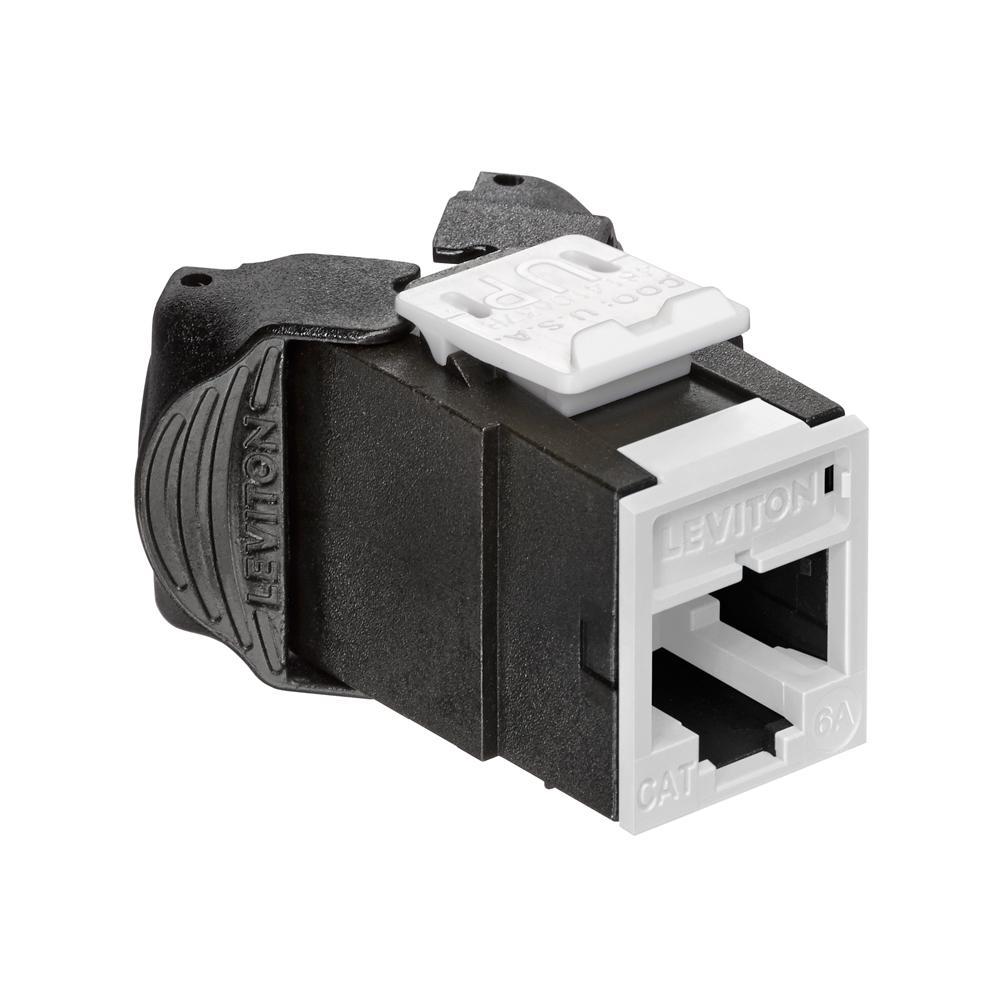

Leviton® Atlas-X1™ QuickPort® UTP Connector, Component Rated Standard, Cat 6a Module, Die Cast Zinc, White, 0.9 in H x 0.68 in W x 1.31 in D

• https://externalassets.unilogcorp.com/ASSETS/DOCUMENTS/ITEMS/EN/Atlas_X1_QuickPort_6AUJK_RV6_Instructions.pdf https://www.iesbuy.com//ASSETS/DOCUMENTS/ITEMS/EN/https://externalassets.unilogcorp.com/ASSETS/DOCUMENTS/ITEMS/EN/Atlas_X1_QuickPort_6AUJK_RV6_Instructions.pdf
• https://externalassets.unilogcorp.com/ASSETS/DOCUMENTS/ITEMS/EN/IDW_DOCUMENT_8acf1ae04cc4aa95f168e2e9a5fd00fe4d9d534b2a5e0f0c66934548f20305f4.pdf https://www.iesbuy.com//ASSETS/DOCUMENTS/ITEMS/EN/https://externalassets.unilogcorp.com/ASSETS/DOCUMENTS/ITEMS/EN/IDW_DOCUMENT_8acf1ae04cc4aa95f168e2e9a5fd00fe4d9d534b2a5e0f0c66934548f20305f4.pdf

• Independently tested and guaranteed to exceed all component, permanent link and channel margins
• Patented retention force technology (RFT) protects against tine damage from 4 or 6-pin plugs
• Unique design supports tool free termination/re-termination and requires no specialized termination tool
• Short connector design supports a wider range of applications
• Terminates from 26 to 22 AWG solid or stranded conductor for use on various cable types
• Robust IDC's can withstand 20 re-termination cycles and connector contacts are tested for 750 plug mating cycles to ensure system longevity
• Connector supplied with interchangeable icons (voice, data, A/V and blank, color coded to match the connector face) for easy identification and tracking of data, voice or other functions
