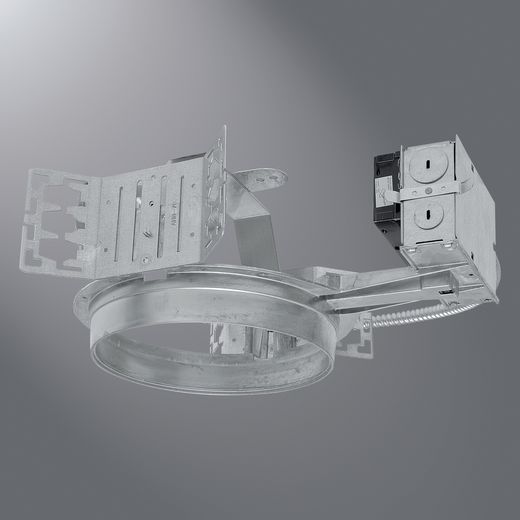

7 in recessed horizontal downlight designed for use with 1 or 2 -18 W or 26 W DTT 4 pin lamps is thermally optimized for longer lamp life and maximum lumen output. Low iridescent reflectors are interchangeable within the same housing, providing unparalleled performance.

Portfolio Recessed Downlight, Horizontal, 120 to 277 VAC, 0.14 A, CFL Lamp, 26 W Lamp, 4-Pin G24Q-3 Lamp Base, 2 Lamps, 8-5/8 in Ceiling Opening, Electronic Ballast, Ceiling Mount, Aluminum Housing, 6-13/16 in H

• Installation Instructions https://www.iesbuy.com//ASSETS/DOCUMENTS/ITEMS/EN/IDW_DOCUMENT_1518584364456.pdf
• Installation Instructions https://www.iesbuy.com//ASSETS/DOCUMENTS/ITEMS/EN/https://www.ideadigitalcontent.com/files/11143/ID-INS-v1-portfolio-adp140607-ins.pdf
• Specification Sheet https://www.iesbuy.com//ASSETS/DOCUMENTS/ITEMS/EN/IDW_DOCUMENT_1518584459114.pdf
• Specification Sheet https://www.iesbuy.com//ASSETS/DOCUMENTS/ITEMS/EN/IDW_DOCUMENT_1537662432843.pdf
• Specification Sheet https://www.iesbuy.com//ASSETS/DOCUMENTS/ITEMS/EN/https://www.ideadigitalcontent.com/files/11143/ID-SPE-v1-portfolio-c7118-ADP051842-sss.pdf
• Technical Drawing https://www.iesbuy.com/IDW_DOCUMENT_1518656861383.zip
• Technical Drawing https://www.ideadigitalcontent.com/files/11143/ID-DRW-v1-Lighting-Downlight-Cooper-Portfolio-C7142.zip
• Warranty https://www.iesbuy.com//ASSETS/DOCUMENTS/ITEMS/EN/IDW_DOCUMENT_1511873502812.pdf
• Warranty https://www.iesbuy.com//ASSETS/DOCUMENTS/ITEMS/EN/http://www.ideadigitalcontent.com/files/11143/StockGuide_Warranty_Page.pdf

• Vented die-cast aluminum socket assembly for maximum performance
• 1-1/2 in die-cast aluminum collar accommodates various ceiling materials
• J box with 1/2 and 3/4 in pryouts for eight 12 ga 90 deg C connectors
• Universal mounting bracket accepts 1/2 in EMT, C-channel or bar hangers
• Low iridescent reflector finish
• Thermally protected
• 50/60 Hz frequency rating
