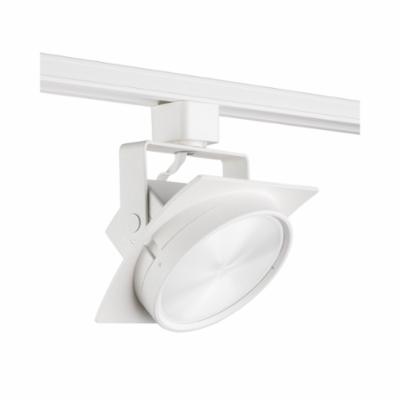

The ultra-efficient optical system of the T271L Arc™ LED Series trac fixture maximizes efficiency while minimizing fixture depth, thereby creating a heat trac light with a unique, attractive aesthetic. It approximates the light output and distribution of a 60 to 75 W PAR30 halogen lamp but consumes just one-fifth the energy and lasts about 15-times longer. It is available in 4 color temperatures with a typical 85 CRI. Optional high CRI versions are available with a typical 92 CRI, as well as Enhanced Spectrum versions. The Arc™ LED can be supplied with a hex cell louver that optimizes visual cut-off.

Juno®, T271L 30K 90CRI PDIM FL WH, Track Head, Avant Garde Phase Dimmable, Series: T271L, LED Lamp, 13.2 W Fixture, 120 VAC, 13 W Lamp, 3000 K Color Temperature, 5-61/64 in Maximum Extension, 1 Lamps, 90 CRI, Flood Beam Spread, 2-1/2 in Width, 5-61/64 in Length, Fixture Mounting, Die Cast Aluminum Housing Material, White Housing Finish

• https://externalassets.unilogcorp.com/ASSETS/DOCUMENTS/ITEMS/EN/Juno_T271L_27K_80CRI_PDIM_FL_BL_Instruction_Sheet.pdf https://www.iesbuy.com//ASSETS/DOCUMENTS/ITEMS/EN/https://externalassets.unilogcorp.com/ASSETS/DOCUMENTS/ITEMS/EN/Juno_T271L_27K_80CRI_PDIM_FL_BL_Instruction_Sheet.pdf
• https://externalassets.unilogcorp.com/ASSETS/DOCUMENTS/ITEMS/EN/IDW_DOCUMENT_b9de2965a56b97577b7b40afdac7da24f3ac3e6b1834bdacdb5a95a76dd74c46.pdf https://www.iesbuy.com//ASSETS/DOCUMENTS/ITEMS/EN/https://externalassets.unilogcorp.com/ASSETS/DOCUMENTS/ITEMS/EN/IDW_DOCUMENT_b9de2965a56b97577b7b40afdac7da24f3ac3e6b1834bdacdb5a95a76dd74c46.pdf

• Die-cast aluminum housing provides outstanding thermal management of LED, yielding 70% average lumen maintenance at 50000 hr of operation
• Solid state electronic, Class 2 compliant
• Integral overcurrent and short circuit protection
• Designed for greater than 50000 hr operating life
• Proprietary, interchangeable polycarbonate lenses available in three factory-configured beam spreads
• Optional louver version retains lens and offers additional visual cutoff using a hexcell design
• Compatible with Juno Trac-Master 1 or 2-circuit systems or Juno Trac-Lites system
• Copper alloy contacts provide precise spring action - no arcing and will not take a set
• True, positive electrical ground
• Patented embossed polarity arrows on bottom of adapter
• Spring-loaded positive latch with embossed polarity arrows secures trac light to trac
• Fashionable, elegant design complements any decor
• Pull-up contact to up position for two-circuit application
• High performance LED array provides outstanding reliability, performance and color quality/consistency
• 2700 K, 3000 K, 3500 K or 4000 K white phosphor high performance LEDs
• Chromaticity range within a 3-step MacAdam Ellipse
• Concealed behind LED light engine housing to minimize overall fixture footprint
• Insulating air gap between driver and LED light engine optimizes thermal operation
• Provides quiet operation with or without dimming
• Dimmable using high quality reverse phase electronic low voltage (ELV) dimmers
