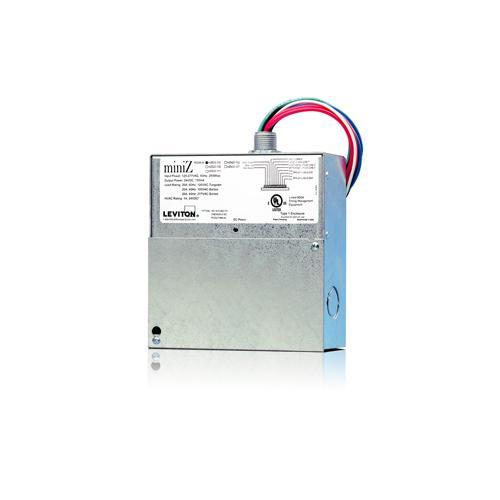

The dual room miniZ™ controller allows two individual rooms to be independently controlled (single zone for each room) and offers the same performance features as the popular miniZ™ controller with a compact, versatile, cost-effective, code compliant approach to daylight harvesting.

Leviton®, MZD22-102, Daylight Harvesting System, Dual Room Self-Configuring, 347 VAC, 15 A, 50/60 Hz Frequency, 0 to 10 VDC Dimming Rate, Specifications: 10 W Fluorescent Lamp, 6.65 in L x 6.65 in H x 2.1 in D Dimensions

• https://externalassets.unilogcorp.com/ASSETS/DOCUMENTS/ITEMS/EN/IDW_DOCUMENT_aa88823c209a2652dc3d2efef5a2399615032a3ac9ec01e444f2c331bf27613b.pdf https://www.iesbuy.com//ASSETS/DOCUMENTS/ITEMS/EN/https://externalassets.unilogcorp.com/ASSETS/DOCUMENTS/ITEMS/EN/IDW_DOCUMENT_aa88823c209a2652dc3d2efef5a2399615032a3ac9ec01e444f2c331bf27613b.pdf
• https://externalassets.unilogcorp.com/ASSETS/DOCUMENTS/ITEMS/EN/Leviton_MZD22_102_Users_Guide.pdf https://www.iesbuy.com//ASSETS/DOCUMENTS/ITEMS/EN/https://externalassets.unilogcorp.com/ASSETS/DOCUMENTS/ITEMS/EN/Leviton_MZD22_102_Users_Guide.pdf
• https://externalassets.unilogcorp.com/ASSETS/DOCUMENTS/ITEMS/EN/IDW_DOCUMENT_fde49fde7990e7f334fc43ff1c4bf8cd85269a4fdf0ae192e7a5abe46926ae00.pdf https://www.iesbuy.com//ASSETS/DOCUMENTS/ITEMS/EN/https://externalassets.unilogcorp.com/ASSETS/DOCUMENTS/ITEMS/EN/IDW_DOCUMENT_fde49fde7990e7f334fc43ff1c4bf8cd85269a4fdf0ae192e7a5abe46926ae00.pdf

• Two individual room control (single zone for each room) combining separate daylight harvesting, occupancy sensors and switching in one compact box
• Ladderless Commissioning™ provides install and forget convenience
• AutoCal™ patent pending setting automatic photocell calibration
• Automatic closed loop setting (one zone per room) daylight control
• Automatic correction setting for light loss factor (LLF) recognizes and corrects for lumen maintenance issues
• Simplified daylight harvesting with 3 to 100% dimming capabilities (0 to 10 VDC fluorescent dimming ballasts required)
• Automatic daylight harvest mode provides optimum lighting output for additional energy savings potential
• Convenient two occupancy sensor and two photocell integration
• Cost effective energy code compliance
• Simplified integration with emergency and building automation systems
• Accepts external time clock inputs
• Closed loop or open loop daylight control
• Isolated contacts for HVAC relay
• Daylight switching, full range 0 to 10 V dimming and network models available
