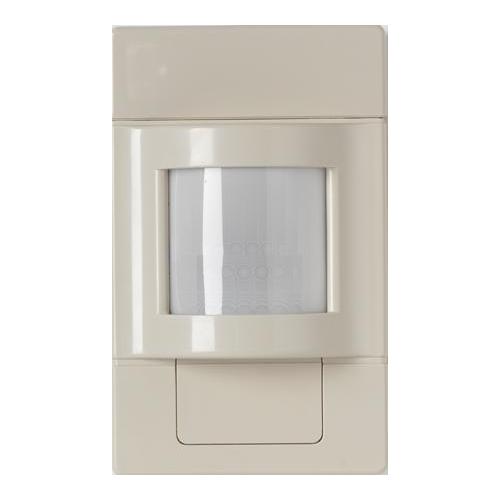

The Large Area Wall Switch from Sensor Switch is ideal for retrofits in classrooms, or in main storage centers and open spaces. It is designed for a mounting height of 30 to 48 inches. The switch uses Pass Infrared technology to detect small motion up to 40 feet away and large motion up to 70 feet away.

Sensor Switch™ Sensor Switch® Large Area Wall Switch Sensor, 1- Pole, Series: LWS, 120/277 VAC, 13 A, 800/1200 W Power, PIR Sensor, 40 ft Coverage, 30 s to 20 min Time Delay, Fluorescent/Incandescent/LED Lamp, 50/60 Hz Response, 100% Accuracy, 0 to 60 deg C, Plastic, White, 4.93 in H x 3.1 in W x 1.7 in D Dimensions

• https://externalassets.unilogcorp.com/ASSETS/DOCUMENTS/ITEMS/EN/Sensor_Switch_HWR13_WH_Installation_Manual.pdf https://www.iesbuy.com//ASSETS/DOCUMENTS/ITEMS/EN/https://externalassets.unilogcorp.com/ASSETS/DOCUMENTS/ITEMS/EN/Sensor_Switch_HWR13_WH_Installation_Manual.pdf
• https://externalassets.unilogcorp.com/ASSETS/DOCUMENTS/ITEMS/EN/Sensor_Switch_LWS_WH_Specification_Sheet.pdf https://www.iesbuy.com//ASSETS/DOCUMENTS/ITEMS/EN/https://externalassets.unilogcorp.com/ASSETS/DOCUMENTS/ITEMS/EN/Sensor_Switch_LWS_WH_Specification_Sheet.pdf

• 100% digital PIR detection, excellent RF immunity
• Relay contact protection
• Interchangeable hot and load wires, impossible to wire backwards
• No neutral connection required/no minimum load
• Small motion detection to 40 ft (12.19 m)
• Adjustable time delays
• LampMaximizer® minimum on time (disabled by default)
• Non-Volatile settings memory
• Single gang switch box mounting
• Gloss finish
• For indoor environment
• 3-way and multi-level switching compatibility
• Green LED indicator
