Accepts #18 To #8 AWG; Rated 50A; Traditional Standard In The Heavy Industrial, Rail Transport, Utility And Traffic Control Industries. The rugged, One-Piece Construction Finds Wide Application In Dirty And Vibration-Prone Environments; Twelve Circuit Models; Strap Screw Contacts Accept Wire 8 AWG And Smaller And Are Rated To 50 A; Pilot Point Screws With Strap Screw Contacts Speed Installation Time; Easily Identifiable Circuits With Use Of Plain White Marking Strip; No Assembly Required - Each Block Is A Single, Easily Installed Unit; Traditional Standard Of Heavy Industry; Strap Contacts Rated At 50 A, Up To #8 AWG; Tubular Contacts Rated At 70 A, Up To #6 AWG; Housing Service Temperature To 150 deg C; Dovetail Base Fits Standard Channel; Blocks Meet 600 VAC Clearance Requirements; UL Recognized And CSA Certified; Construction: One-Piece; Temperature Rating:150 deg C; Screw Type:10-32 Slotted Binding Head; Radiation Resistance (ergs G1 C):0.49 - 0.58; Chemical Resistance: Resistant To Acids, Alkalies, Aliphatic Hydrocarbons And Ketones (Per ASTM D5343); Dielectric Strength:300 VAC/mil Thickness (Per ASTM D149); Water Absorption (24 hr Pct Weight Gain):0.45 PCT (Per ASTM D570); Flammability:94V-1 (Per UL94)

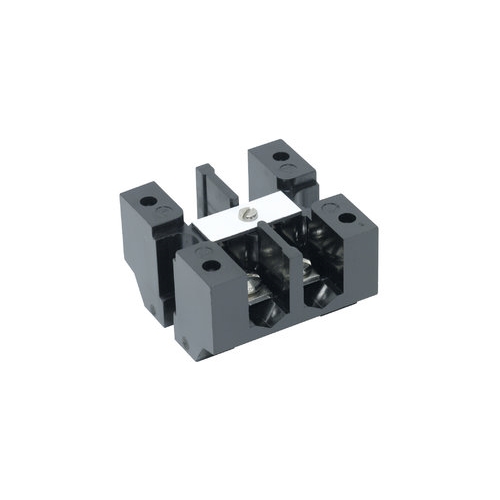

BUCHANAN Terminal Block, 1-Piece Standard, 600 VAC, 50 A, 12 Terminals, 18 to 8 AWG Wire, 0.63 in Center Spacing, Strap Screw Connection, 150 deg C, Phenolic, Black

• Traditional standard of heavy industry
• Dovetail base fits standard channel
• Steel strap screw
• 12-circuit
• 8 AWG maximum wire
