Leviton is the leading manufacturer of Ground Fault Circuit Interrupters (GFCIs) in the electrical industry. Available in Extra Heavy Duty Hospital and Commercial Spec Grade, they are ideal for a wide range of GFCI applications. Our large selection of GFCIs includes Tamper-Resistant (TR) GFCI devices that meet Section 406.11 of the 2008 code and help protect children from electrical shock. For the highest level of ground fault protection, install 2008 NEC code compliant Weather-Resistant GFCI (WR) receptacles, which meet UL 498 requirements. Built with UV stabilized engineering thermoplastic, the devices have high cold impact resistance and feature stainless steel straps and mounting screws.

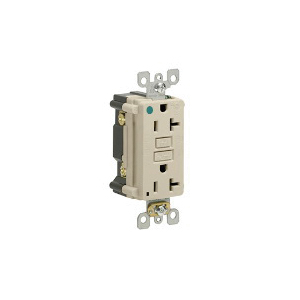

Leviton® SmartlockPro® GFCI Duplex Receptacle, 125 VAC, 20 A, 1 hp, 2 Poles, 3 Wires, NEMA 5-20R, Commercial/Hospital Grade, -35 to 66 deg C, Screw Terminal, Polycarbonate, Ivory, 4.21 in H

• GFCI ground fault grounding
• 10 kA limiting current
• Max 30 C after 50 cycles OL at 150 percent rated current temperature rise
• 5 mA plus or minus 1 mA trip level
• Nylon cover, galvanized steel with riveted ground contacts strap, 0.031 in THK brass, double-wipe line contacts, silver alloy internal switch contacts, plated brass terminal screws, plated steel grounding screw, galvanized steel clamp nuts
• Brass-hot, green-ground, silver-neutral terminal ID
• 14 to 12 AWG terminal accommodation
• Back and side wired with 20 A feed-through
