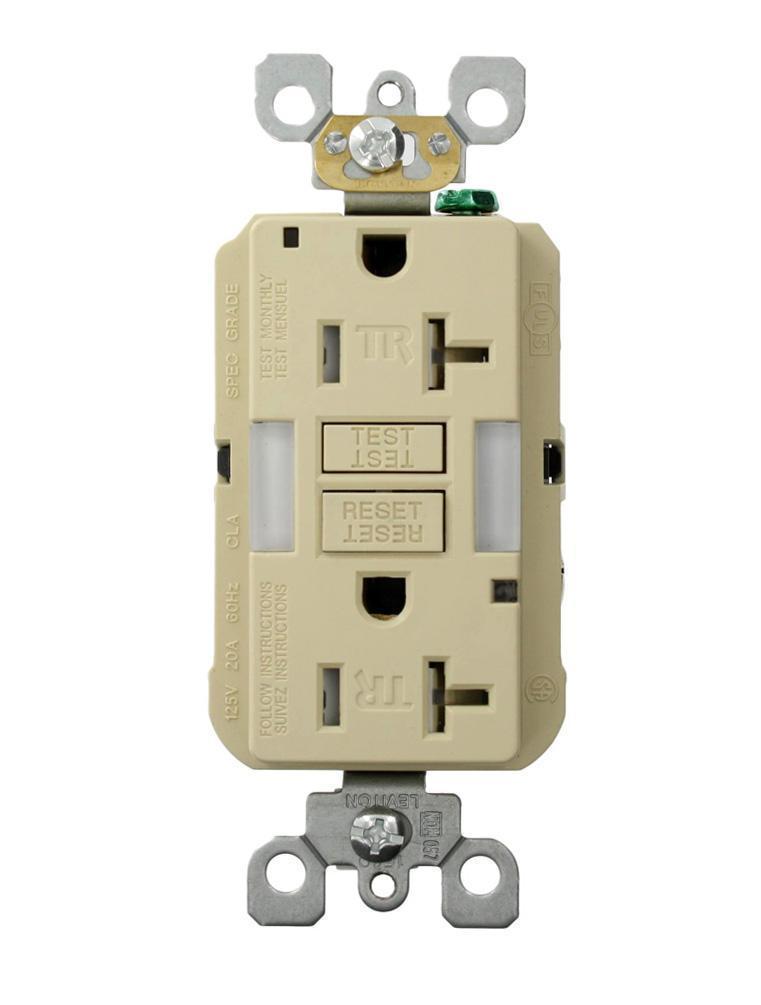

The SmartlockPro slim GFCI/Guide Light is a great way to add an extra element of safety when it dark without losing outlet space in kitchens, bathrooms, laundry rooms and hospitality guest suites. Instead of needing to plug in a nightlight and take up an outlet space, the device offers dual LED guide lights that turn ON and OFF automatically based on light levels and uses only 1W of electricity. The slim GFCI/Guide Light is tamper-resistant to meet current National Electrical Code requirements for child safety, includes a line-load reversal indicator to aid in diagnosing wiring errors during install, and provides our patented reset lockout feature that will not allow a GFCI to be reset if it is not properly powered and able to provide protection. Designed to be the most compact GFCI on the market, the device reduced depth makes it easier to install in an electrical box.

SmartlockPro® GFCI Receptacle, Duplex Guide Light, Series: Slim, 125 VAC, 20 A, 1 hp, 2 Pole, 3 Wires, NEMA 5-20R NEMA Rating, Residential Grade, -35 to 66 deg C, Screw Terminal, Polycarbonate, Ivory, 4.21 in H x 1.69 in W x 1.32 in D Dimensions

• https://externalassets.unilogcorp.com/ASSETS/DOCUMENTS/ITEMS/EN/IDW_DOCUMENT_1520611180055.pdf https://www.iesbuy.com//ASSETS/DOCUMENTS/ITEMS/EN/https://externalassets.unilogcorp.com/ASSETS/DOCUMENTS/ITEMS/EN/IDW_DOCUMENT_1520611180055.pdf

• Sensor provides automatic ON/OFF based on ambient lighting
• Dual lens provides visible light with a variety of plugs or transformers
• Custom designed lenses with edge-mounted LEDs improve light dispersion
• Is energy-efficient, uses approximately 1W of electricity-no bulbs to replace
• Saves space by eliminating the need to use an outlet for a plug-in night light
• Reduced depth of SmartLockPro® Slim GFCI makes it easier to install in any electrical box, even shallow ones
• Terminals allow for easy wiring options back and Side wire capable
• External Back-wire clamps provide visual indication of proper wire seating
• Withstands high torque and resists wire pullout
• Standard brass self-grounding clips
• Automatically tests the GFCI every time the RESET button is pushed in, the GFCI will not reset if the GFCI circuit is not functioning properly
• By blocking reset of the GFCI if protection has been compromised, SmartlockPro Slim GFCI reduces the possibility of end-users incorrectly assuming that a reset GFCI outlet is providing ground fault protection when it actually is not
• A line load reversal diagnostic feature is provided which prevents the GFCI from being reset and stops power from being fed to the GFCI receptacle face or through to downstream devices, A white LED indicator on the GFCI face also illuminates to alert the installer to the line load wiring reversal
• Trip threshold meets or exceeds UL requirements for tripping time
• Improved immunity to high frequency noise reduces nuisance tripping
• Advanced electronics design provides superior resistance to electrical surges and over-voltages
• Compatible with all Decora® devices and wallplates available in select Decora® colors
• Withstands 1250 VAC per UL 943 and CSA-C22.2 NO 144.1-06
• Max 30 C after 100 cycles OL at 150% rated current temperature rise
• Rated V-2 per UL94 flammability
