Eaton's B-Line series JIC panel enclosures provide reliable environmental protection and are used to house electrical controls and instruments, but are also commonly used as industrial wiring, junction, pull, and termination boxes.

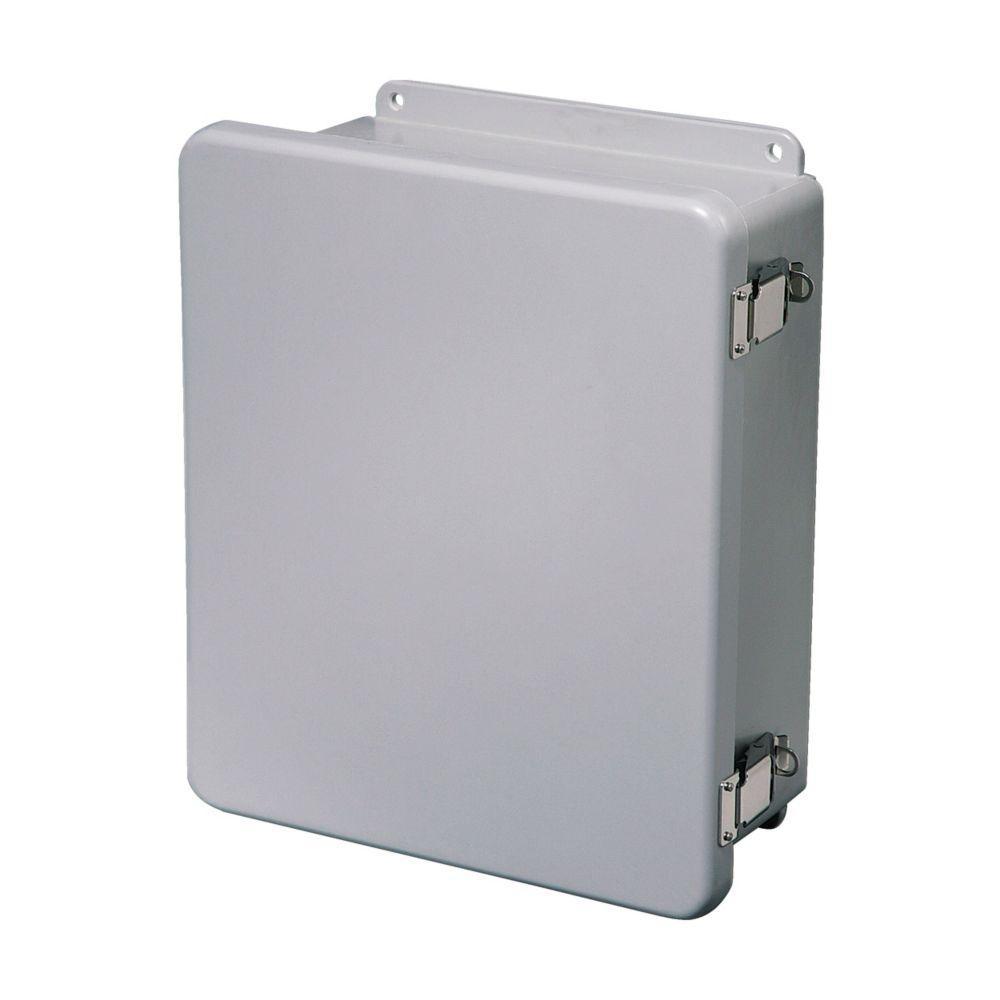

B-Line JIC Enclosure, 15.46 in Width, 6.23 in Depth, 17.53 in Height, NEMA 4X NEMA Rating, Hinged Cover, 13.6 in W x 5.94 in D x 15.63 in H Panel, Lock: Quick-Release Latch/Padlock, Wall Mounting, -40 to 250 deg F, Fiberglass Reinforced Polyester, Gray

• https://externalassets.unilogcorp.com/ASSETS/DOCUMENTS/ITEMS/EN/1086_SDFQRCC_Catalog.pdf https://www.iesbuy.com//ASSETS/DOCUMENTS/ITEMS/EN/https://externalassets.unilogcorp.com/ASSETS/DOCUMENTS/ITEMS/EN/1086_SDFQRCC_Catalog.pdf
• https://externalassets.unilogcorp.com/ASSETS/DOCUMENTS/ITEMS/EN/B-Line_16146-4XFCHQRC_Specification_Sheet.pdf https://www.iesbuy.com//ASSETS/DOCUMENTS/ITEMS/EN/https://externalassets.unilogcorp.com/ASSETS/DOCUMENTS/ITEMS/EN/B-Line_16146-4XFCHQRC_Specification_Sheet.pdf

• Enclosures are an impact resistant, non-conductive, lightweight hot compression molded fiberglass-reinforced polyester
• Poured polyurethane seamless gasket provides watertight, dust-tight environmental seal
• Captive screws provide smooth surfaces
• 300 series stainless steel used ON all external hardware
• Integral flange molded-in place for ease of mounting
• Integral mounting bosses utilize threaded brass inserts accepting #10-32 screws for mounting optional panel
• Rounded edges reduce build-up of dust and debris
• Full length stainless steel hinged cover
• Padlocking latches provide quick access and optional closure locking (padlock not included)
• Protects against corrosion, windblown dust and rain, splashing water, hose directed water and prolonged submersion
• Non-flame propagating self extinguishing
• Chemical resistance
