The Juno® Pro-series halogen modular fixture series with integral electronic transformer operates 12 VAC halogen lamps for optimal color rendering with maximum light output and lamp life. The efficient operation of low voltage lamps, along with a unique housing/reflector system, reduces mounting surface temperatures far below typical halogen undercabinet fixtures. They are designed for fast, permanent installation, mounting either flush to the rear backsplash or to the front lip of cabinetry.

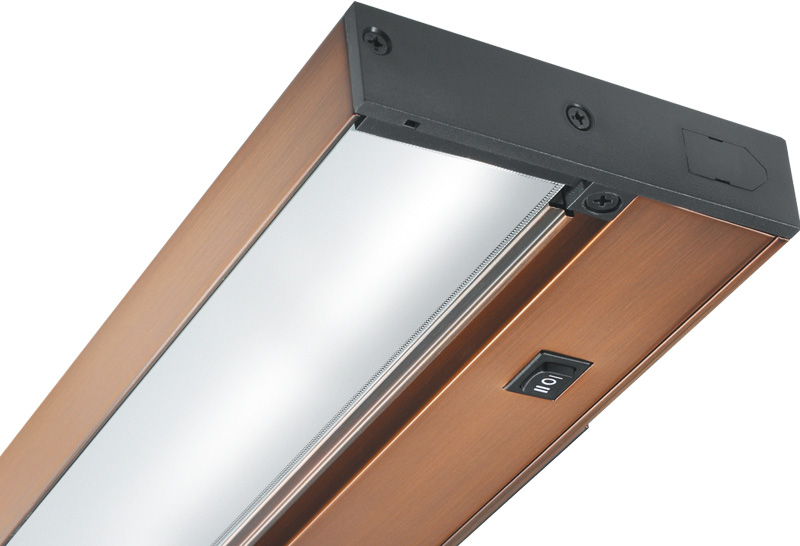

Juno® Under Cabinet Light, Series: Pro Series®, 12 VDC, 40 W Fixture, 0.34 A, Halogen Lamp, 20 W Lamp, Bi-Pin Lamp Base Type, 2 Lamps, 6000 hr Average Life, Electronic/Integral Ballast, Tempered Glass Lens, Aluminum Housing, Brushed Bronze Housing, 14 in L x 4-1/2 in W x 1 in H

• https://externalassets.unilogcorp.com/ASSETS/DOCUMENTS/ITEMS/EN/Juno_UFL46_SL_Brochure.pdf https://www.iesbuy.com//ASSETS/DOCUMENTS/ITEMS/EN/https://externalassets.unilogcorp.com/ASSETS/DOCUMENTS/ITEMS/EN/Juno_UFL46_SL_Brochure.pdf
• https://externalassets.unilogcorp.com/ASSETS/DOCUMENTS/ITEMS/EN/Juno_ULH214_BZ_Installation_Instructions_Sheet.pdf https://www.iesbuy.com//ASSETS/DOCUMENTS/ITEMS/EN/https://externalassets.unilogcorp.com/ASSETS/DOCUMENTS/ITEMS/EN/Juno_ULH214_BZ_Installation_Instructions_Sheet.pdf
• https://externalassets.unilogcorp.com/ASSETS/DOCUMENTS/ITEMS/EN/IDW_DOCUMENT_b7f4a4b399c3051e388869bfb92ca5578cec3ec874dbc4b1f0131cac862839e6.pdf https://www.iesbuy.com//ASSETS/DOCUMENTS/ITEMS/EN/https://externalassets.unilogcorp.com/ASSETS/DOCUMENTS/ITEMS/EN/IDW_DOCUMENT_b7f4a4b399c3051e388869bfb92ca5578cec3ec874dbc4b1f0131cac862839e6.pdf

• 20 W, 12 VAC halogen bi-pin lamps supplied with fixture
• Projected 6000 hr life based on actual operating voltage in fixture
• Integral electronic 120 to 12 V step down transformer is accessible for maintenance without having to remove fixture
• Specular aluminum reflector behind each lamp
• Clear prismatic tempered glass lens for maximum light transmission
• Reverse angled to minimize perceived brightness
• Captive lens has hinged design for tool less relamping
• Spring loaded retention bar prevents lens from accidently being bumped loose
• Convenient integral high/low/off rocker switch
• For best results use dimmer specifically designed for use with electronic low-voltage transformers
• 0.99 power factor
