Eaton’s Series C Molded Case Circuit Breakers are used in panelboard, switchboard, motor control center, and busway applications for dependable branch circuit protection. They have proven user acceptance for over 20 years and meet or exceed North American standards. Available for systems up to 600 VAC or 250 VDC with current ratings up to 2500A.

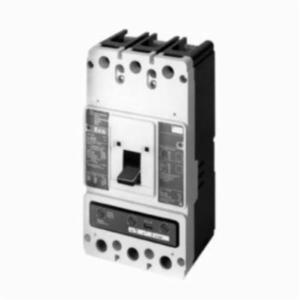

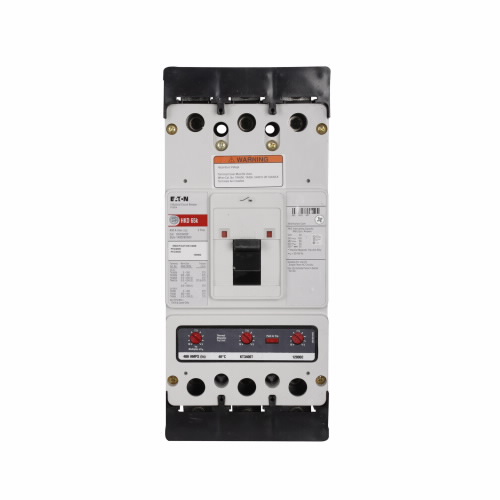

Cutler-Hammer Molded Case Circuit Breaker, Type HKD Thermal Magnetic, Series: C, 600 VAC/250 VDC, 400 A, 50/60 Hz, 65 kA Interrupt, K Frame, Long Time/Instantaneous Trip, 3 Pole, 3 Phase, Line and Load Lug, 3/0 AWG to 250 Kcmil Wire, Panel Mount, 40 deg C, 10.13 in H x 5.5 in W x 4.1 in D

• IDW ITEM DOCUMENTS https://www.iesbuy.com//ASSETS/DOCUMENTS/ITEMS/EN/IDW_DOCUMENT_1511875259416.pdf
• Catalog https://www.iesbuy.com//ASSETS/DOCUMENTS/ITEMS/EN/Cutler_Hammer_DK2400_Catalog.pdf
• IDW ITEM DOCUMENTS https://www.iesbuy.com//ASSETS/DOCUMENTS/ITEMS/EN/IDW_DOCUMENT_1511957922333.pdf
• IDW ITEM DOCUMENTS https://www.iesbuy.com//ASSETS/DOCUMENTS/ITEMS/EN/http://www.ideadigitalcontent.com/files/10964/ID-SPE-v1-TD01203013E.pdf
• IDW ITEM DOCUMENTS http://www.eaton.com/ecm/idcplg?IdcService=GET_FILE&allowInterrupt=1&RevisionSelectionMethod=LatestReleased&noSaveAs=0&Rendition=Primary&dDocName=PA012003EN
• IDW ITEM DOCUMENTS http://www.eaton.com/ecm/idcplg?IdcService=GET_FILE&allowInterrupt=1&RevisionSelectionMethod=LatestReleased&noSaveAs=0&Rendition=Primary&dDocName=HKD3_.ipt_20363
• Video Link http://videos.eaton.com/detail/videos/circuit-protection/video/3629323087001/series-c-circuit-breakers-laser-marker?autoStart=true&page=1

• K-frame circuit breakers are available as individual components (frame, trip unit, terminals) or factory assembled complete breakers
• High interrupting
• With interchangeable trip units
• Copper/aluminum
