Eaton’s Series C Molded Case Circuit Breakers are used in panelboard, switchboard, motor control center, and busway applications for dependable branch circuit protection. They have proven user acceptance for over 20 years and meet or exceed North American standards. Available for systems up to 600 VAC or 250 VDC with current ratings up to 2500A.

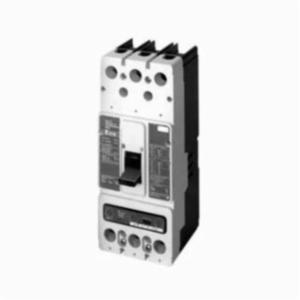

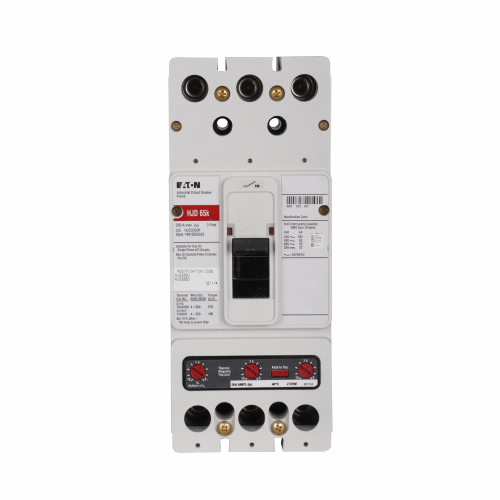

Cutler-Hammer Molded Case Circuit Breaker, Type HJD Thermal Magnetic High Interrupting Capacity, Series: C, 600 VAC, 175 A, 65 kA Interrupt, J Frame, Long Time/Instantaneous Trip, 3 Pole, 3 Phase, Line and Load Lug, 4 AWG to 350 Kcmil Wire, Feed-Thru Mount, 40 deg C, 10 in H x 4.13 in W x 4.06 in D

• IDW ITEM DOCUMENTS https://www.iesbuy.com//ASSETS/DOCUMENTS/ITEMS/EN/IDW_DOCUMENT_1511877516988.pdf
• Catalog https://www.iesbuy.com//ASSETS/DOCUMENTS/ITEMS/EN/Cutler_Hammer_DK2400_Catalog.pdf
• IDW ITEM DOCUMENTS https://www.iesbuy.com//ASSETS/DOCUMENTS/ITEMS/EN/http://www.ideadigitalcontent.com/files/10964/ID-SPE-v1-TD012033EN.pdf
• IDW ITEM DOCUMENTS http://www.eaton.com/ecm/idcplg?IdcService=GET_FILE&allowInterrupt=1&RevisionSelectionMethod=LatestReleased&Rendition=Primary&dDocName=98126787
• Video Link http://videos.eaton.com/detail/videos/circuit-protection/video/3629323087001/series-c-circuit-breakers-laser-marker?autoStart=true&page=1

• All Eaton's J-frame circuit breakers are HACR rated
• Circuit breakers significantly outperform the calculations listed in the institute of electrical and electronic engineers (IEEE) standard 1584-2002, guide for performing arc flash hazard calculations
• Patented contact design features high-speed blow-open action, resulting in superior performance
• With non-interchangeable trip units are suitable for reverse feed use
• Copper/aluminum
