B-Line 6660 G

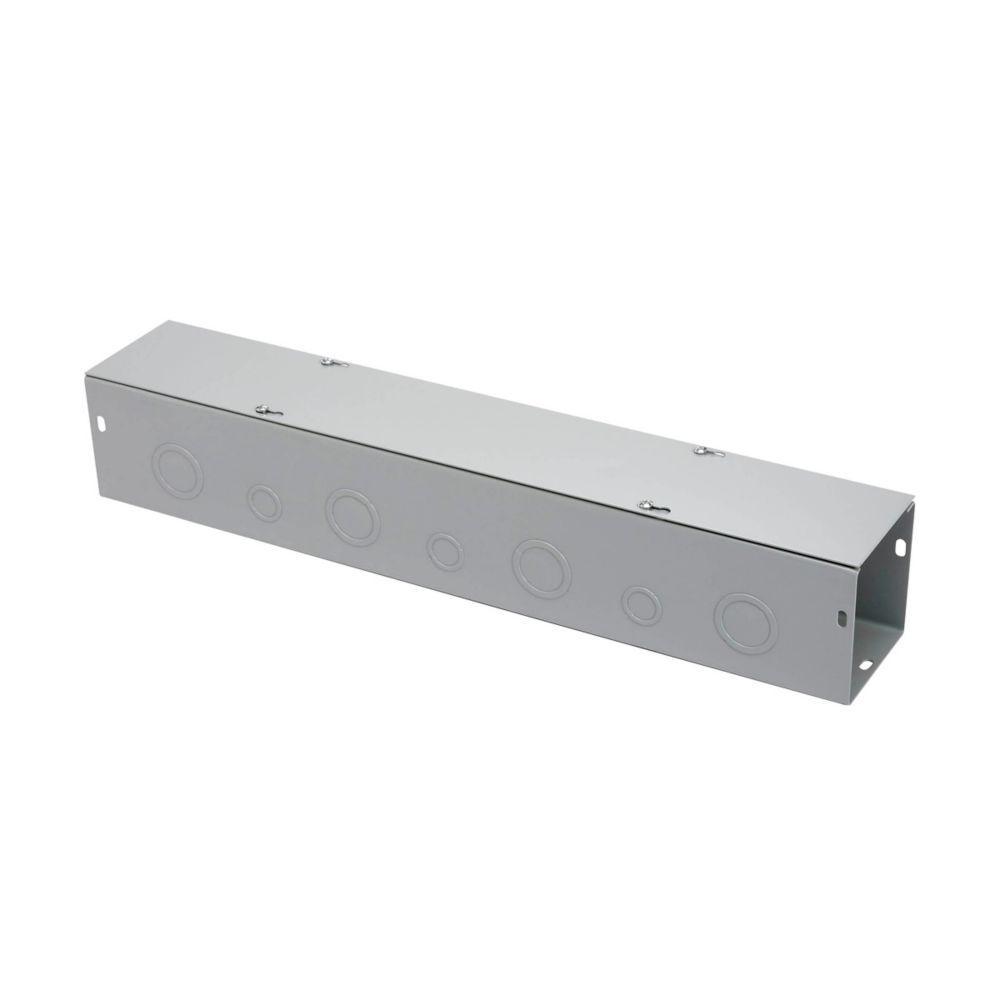

B-Line 6660 G Straight Section Lay-In Wireway With Knockout, 60 in L x 6 in W x 6 in H, Screw Cover, Steel

  • MPN: 6660 G

  • IESPN: 8528

  • UPC: 782051102901

  • Min Order Qty: 1

  • Quantity Interval: 1

    • Availability: loading

    • Branch Availability
B-Line 6660 G

B-Line Lay-In Wireway, Straight Section, Series, 60 Length, Width in, in 6, 6 Height, Cover Type in, Number of Knockouts, 3/4 or 1/2 in, 1-1/4 or 1 in Knockout, NEMA Rating, Steel, Color, Acrylic Electro Coated/Painted

Type      Straight Section
Length      60 in
Width      6 in
Height      6 in
Cover Type      Screw
Number of Knockouts      38
Knockout Size      3/4 or 1/2 in, 1-1/4 or 1 in
NEMA Rating      NEMA 1/IP30
Material      Steel
Color      Gray
Finish      Acrylic Electro Coated/Painted
  • pdfBrochure https://www.iesbuy.com//ASSETS/DOCUMENTS/ITEMS/EN/IDW_DOCUMENT_1520616408419.pdf
  • pdfBrochure https://www.iesbuy.com//ASSETS/DOCUMENTS/ITEMS/EN/https://www.ideadigitalcontent.com/files/11024/ID-BRO-v1-T1ScrewCoverWireway.pdf
  • pdfCatalog https://www.iesbuy.com//ASSETS/DOCUMENTS/ITEMS/EN/B_Line_66_3RAHSXJ_Catalog.pdf
  • pdfSpecification Sheet https://www.iesbuy.com//ASSETS/DOCUMENTS/ITEMS/EN/B_Line_44_L_SWEEP_Data_Sheet.pdf
  • pdfSpecification Sheet https://www.iesbuy.com//ASSETS/DOCUMENTS/ITEMS/EN/IDW_DOCUMENT_1520546946581.pdf
  • pdfSpecification Sheet https://www.iesbuy.com//ASSETS/DOCUMENTS/ITEMS/EN/https://www.ideadigitalcontent.com/files/11024/ID-SPE-v1-T1ScrewCoverWireway.pdf
  • pdfWarranty https://www.iesbuy.com//ASSETS/DOCUMENTS/ITEMS/EN/B_Line_SB596V23153AAL_Warranty.pdf
  • pdfWarranty https://www.iesbuy.com//ASSETS/DOCUMENTS/ITEMS/EN/IDW_DOCUMENT_1520545289334.pdf
  • pdfWarranty https://www.iesbuy.com//ASSETS/DOCUMENTS/ITEMS/EN/IDW_DOCUMENT_1537666263090.pdf
  • Wireway body and cover are fabricated from code gauge steel or galvanized steel
  • Wireway body has mounting holes on the back
  • Cover is secured to the body with plated screws
  • Keyhole slots are furnished on the wireway cover which allow easy access to the inside without removing the screws
  • Wireway exceeding 72 in L has two overlapping covers
  • Variety of fittings allow runs which can change direction, junction and terminate
  • Standard wireway connectors (sold separately) have a gate feature which can swing completely open allowing for lay in of wire and cable
  • Interchangeable with type 1 hinge cover wireway and fittings when HSCA connector is used
  • A2 discount schedule
  • AK1 and Z40 subclass
  • Wash and phosphate undercoat or galvanized steel finish
