This attractive, functional line of pushbuttons features a space-saving construction that enables fast assembly. The complete illuminated M22 line offers LED light units to ensure high-quality brightness and up to 100,000 hours of illumination. Because of the rugged design of these pushbuttons, most operators and contact blocks exceed five million mechanical operations.

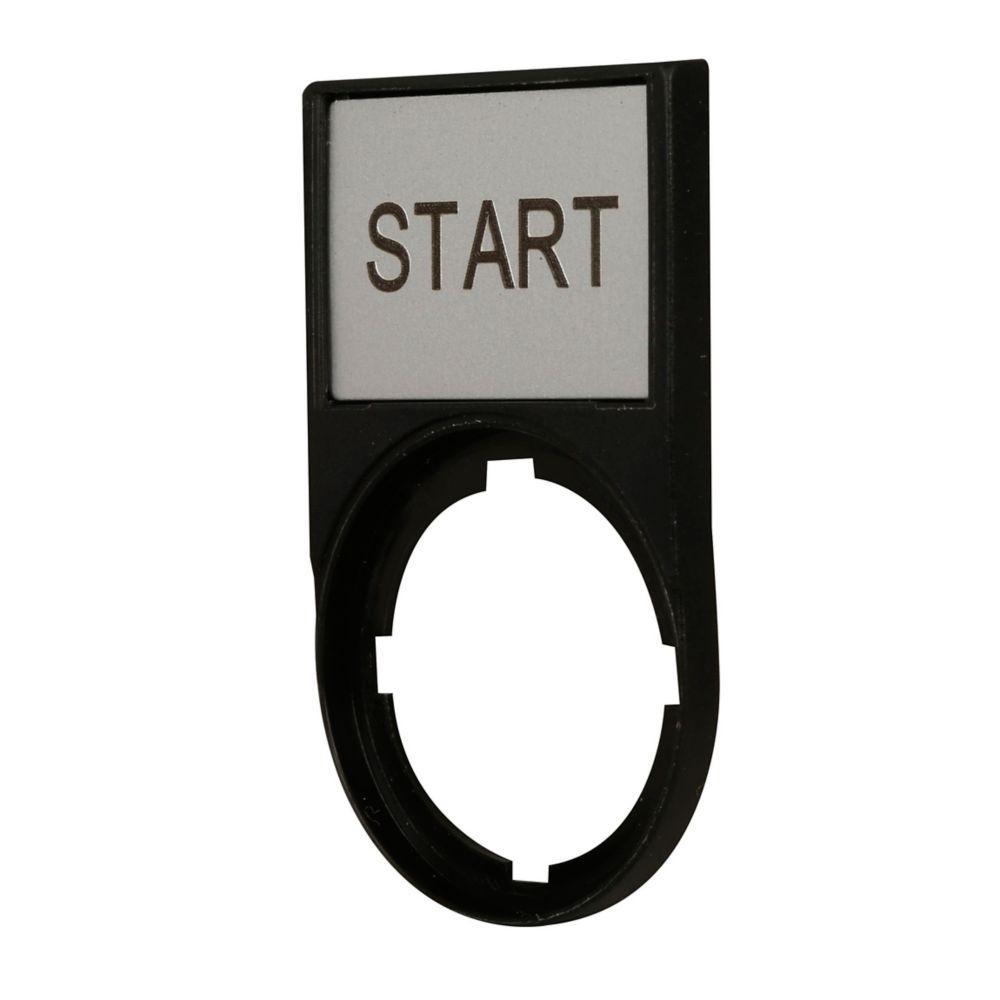

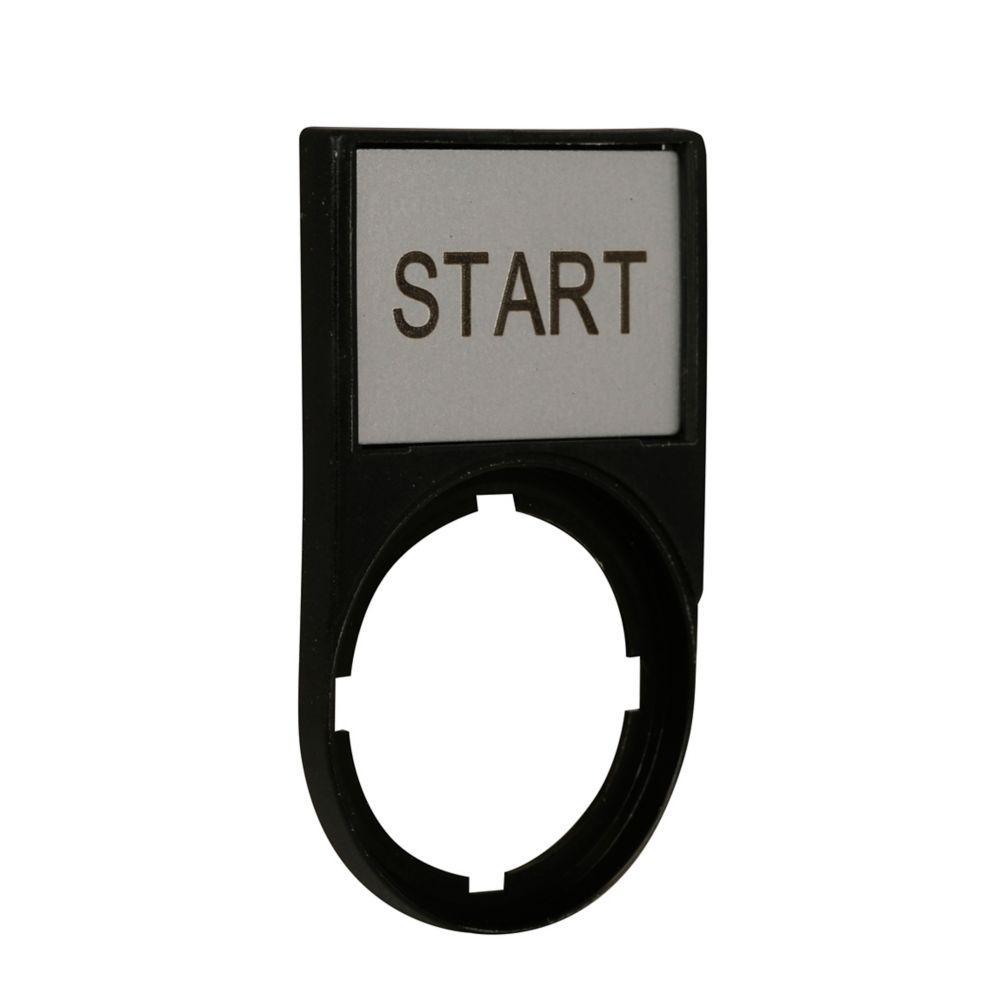

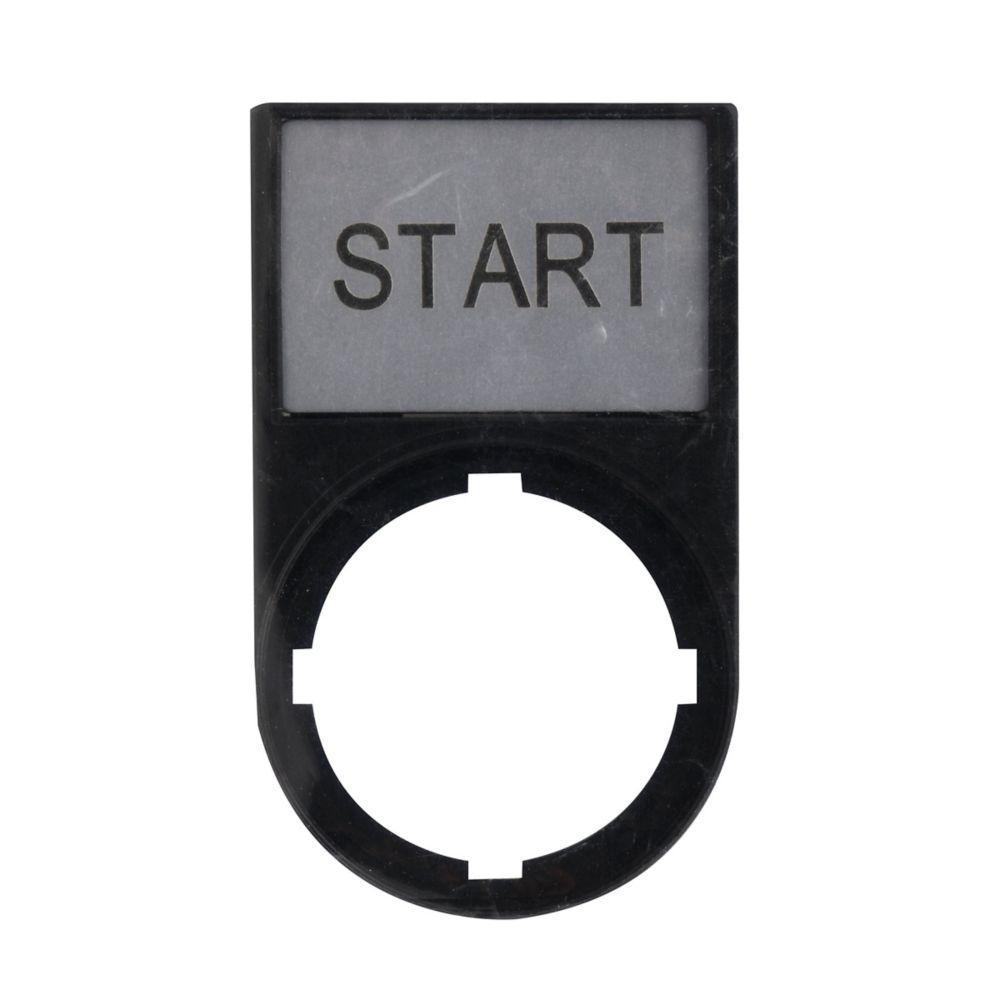

EATON Modular Pushbutton Legend Plate, Series: M22, Pushbutton Operator, START Legend, 1.18 in Width

• Brochure https://www.iesbuy.com//ASSETS/DOCUMENTS/ITEMS/EN/IDW_DOCUMENT_1515127694199.pdf
• Brochure https://www.iesbuy.com//ASSETS/DOCUMENTS/ITEMS/EN/https://www.ideadigitalcontent.com/files/10964/ID-BRO-v1-CA08100008E.pdf
• Installation Instructions https://www.iesbuy.com//ASSETS/DOCUMENTS/ITEMS/EN/IDW_DOCUMENT_1515128469586.pdf
• Installation Instructions https://www.iesbuy.com//ASSETS/DOCUMENTS/ITEMS/EN/https://www.ideadigitalcontent.com/files/10964/IL04716001E.pdf
• Specification Sheet https://www.iesbuy.com//ASSETS/DOCUMENTS/ITEMS/EN/Cutler_Hammer_M22S_ST_GB1_Data_Sheet.pdf
• Specification Sheet https://www.iesbuy.com//ASSETS/DOCUMENTS/ITEMS/EN/IDW_DOCUMENT_1516382801587.pdf
• Specification Sheet https://www.iesbuy.com//ASSETS/DOCUMENTS/ITEMS/EN/https://www.ideadigitalcontent.com/files/10964/ID-SPE-v1-TD04716001E.pdf
• Technical Bulletin https://www.iesbuy.com//ASSETS/DOCUMENTS/ITEMS/EN/IDW_DOCUMENT_1485504753440.pdf
• Technical Bulletin http://www.eaton.com/ecm/idcplg?IdcService=GET_FILE&allowInterrupt=1&RevisionSelectionMethod=LatestReleased&noSaveAs=0&Rendition=Primary&dDocName=TD04716001E
• Video Link https://www.youtube.com/watch?v=_nJTR29VEFM

• M22 now offers an attractive chrome metal bezel that will enhance appeal to your 22 mm pushbutton applications
• Most pushbutton operators and contact blocks exceed 5 million mechanical operations
• This highly versatile line features field-convertible functions and customized laser engraving capabilities
• LED indicators offer 100000 hr of life in high vibration environments and lenses specifically designed for LED illumination
• All components feature an IP66 rating and some carry IP67 and IP69K for wash down environments
• For use with pushbuttons and indicating lights
• 22.5 mm size
• Legend plate holder with insert
