Eaton's Residential Meter Breakers save time and cost by providing contractors with all-in-one service entrance equipment. They allow for quick, flexible, simple installation, and can be used with BR- or CH-type branch circuit breaker styles. Constructed to be a self-contained durable enclosure and meet the latest NEC wire bending space requirements, they are particularly useful for residential metering in areas where utilities are deregulated, and the electrical contractor has to supply watt-hour meter sockets.

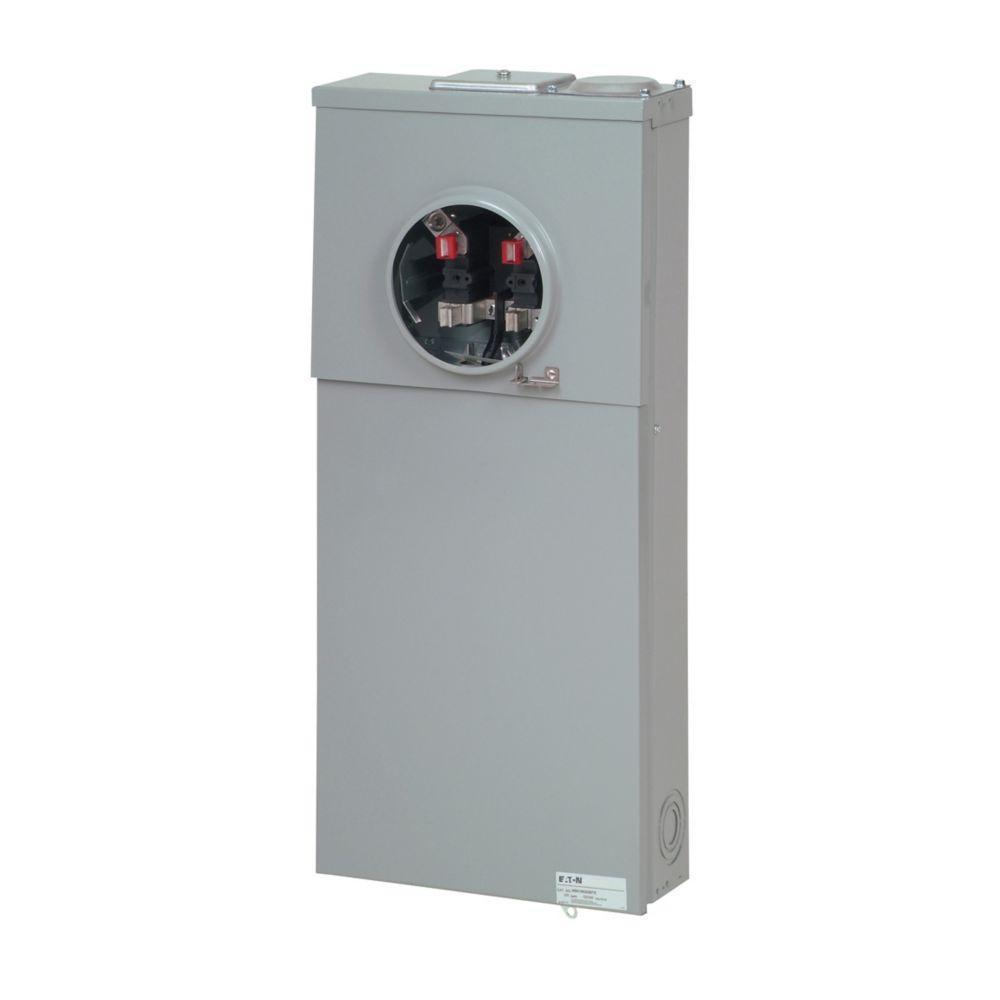

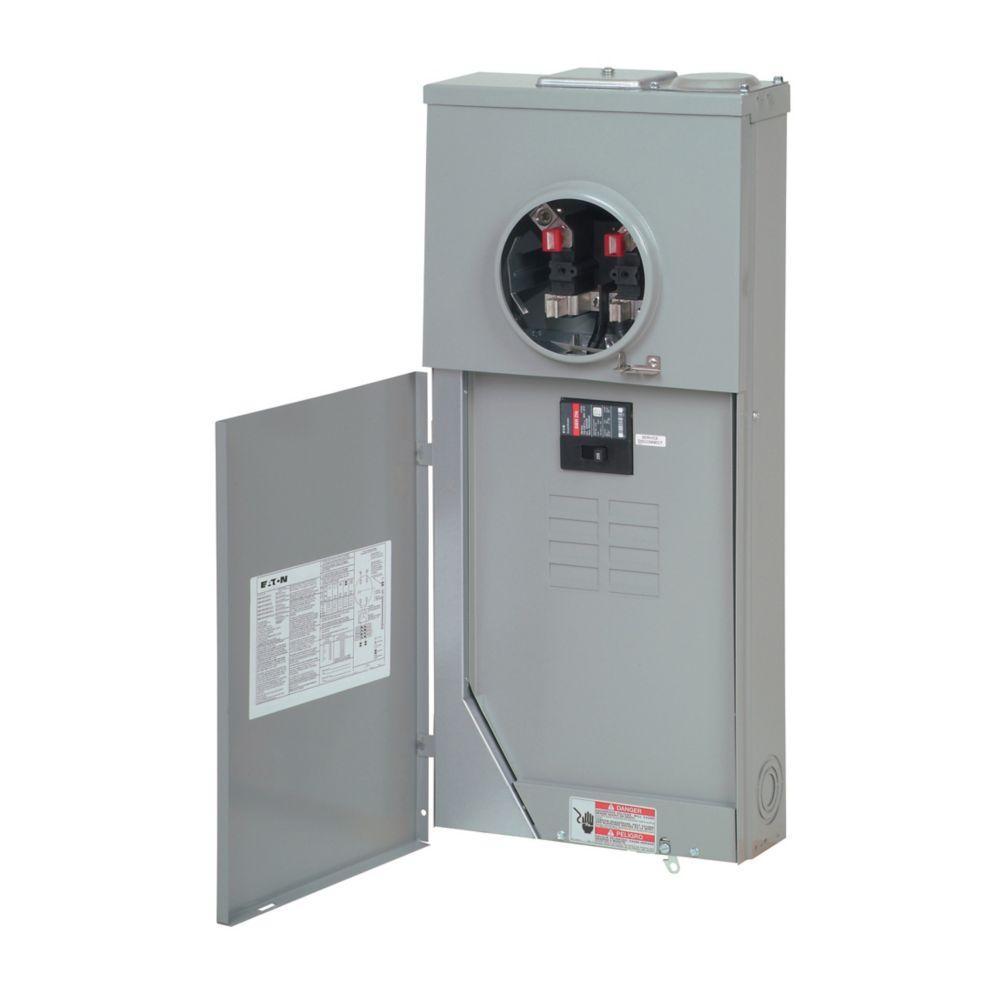

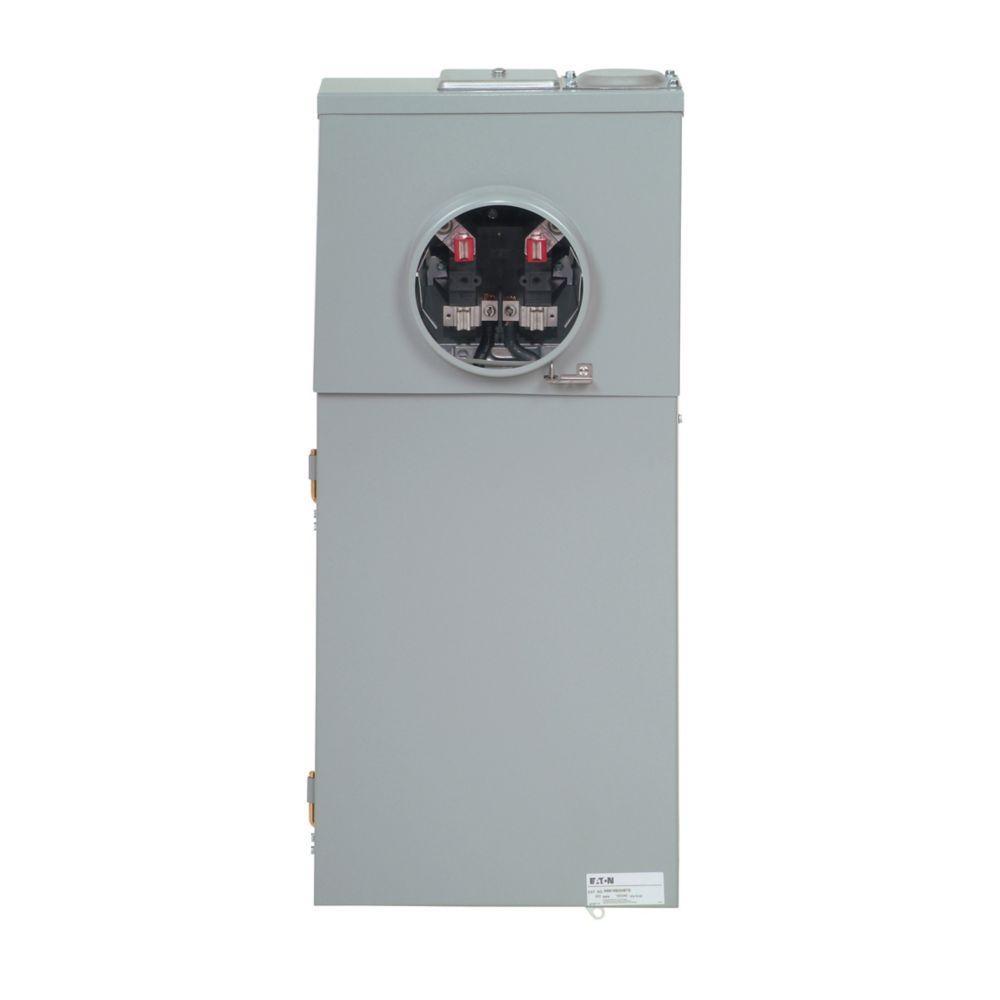

EATON Meter Breaker, Type BR 16-Circuit 8-Space 3-Wire All-In-One Combination Service Entrance Non-EUSERC, Series: MB Series, 120/240 VAC, 200 A, 1 Phase , Bottom/Overhead/Top/Underground Feed, 4 Jaws, 6 AWG to 350 kcmil Wire, Top Endwall, 1 in Hub, Ringless Cover, Feed Through Lug/Line/Load Terminal, Surface Mount, NEMA 3R, 5.38 in L x 14.44 in W x 32.38 in H

• https://externalassets.unilogcorp.com/ASSETS/DOCUMENTS/ITEMS/EN/EATON_CH9MB270_User_Manual.pdf https://www.iesbuy.com//ASSETS/DOCUMENTS/ITEMS/EN/https://externalassets.unilogcorp.com/ASSETS/DOCUMENTS/ITEMS/EN/EATON_CH9MB270_User_Manual.pdf
• https://externalassets.unilogcorp.com/ASSETS/DOCUMENTS/ITEMS/EN/EATON_MB816B200BTS_Specification_Sheet.pdf https://www.iesbuy.com//ASSETS/DOCUMENTS/ITEMS/EN/https://externalassets.unilogcorp.com/ASSETS/DOCUMENTS/ITEMS/EN/EATON_MB816B200BTS_Specification_Sheet.pdf
• https://externalassets.unilogcorp.com/ASSETS/DOCUMENTS/ITEMS/EN/EATON_MBE1212L200BTF_Technical_Bulletin.pdf https://www.iesbuy.com//ASSETS/DOCUMENTS/ITEMS/EN/https://externalassets.unilogcorp.com/ASSETS/DOCUMENTS/ITEMS/EN/EATON_MBE1212L200BTF_Technical_Bulletin.pdf

• Larger lay-in lugs and 3 in knockouts for ease of installation
• Factory installed neutral assemblies
• Hub provisions on top endwall
• Padlockable device covers provide an additional measure of security and help prevent tampering
