EATON B-Line series enclosure solutions are designed to meet our customer requirements. From standard stock product to modified enclosures, our enclosure experts are available to help you choose the enclosures you want, in the time you need them.

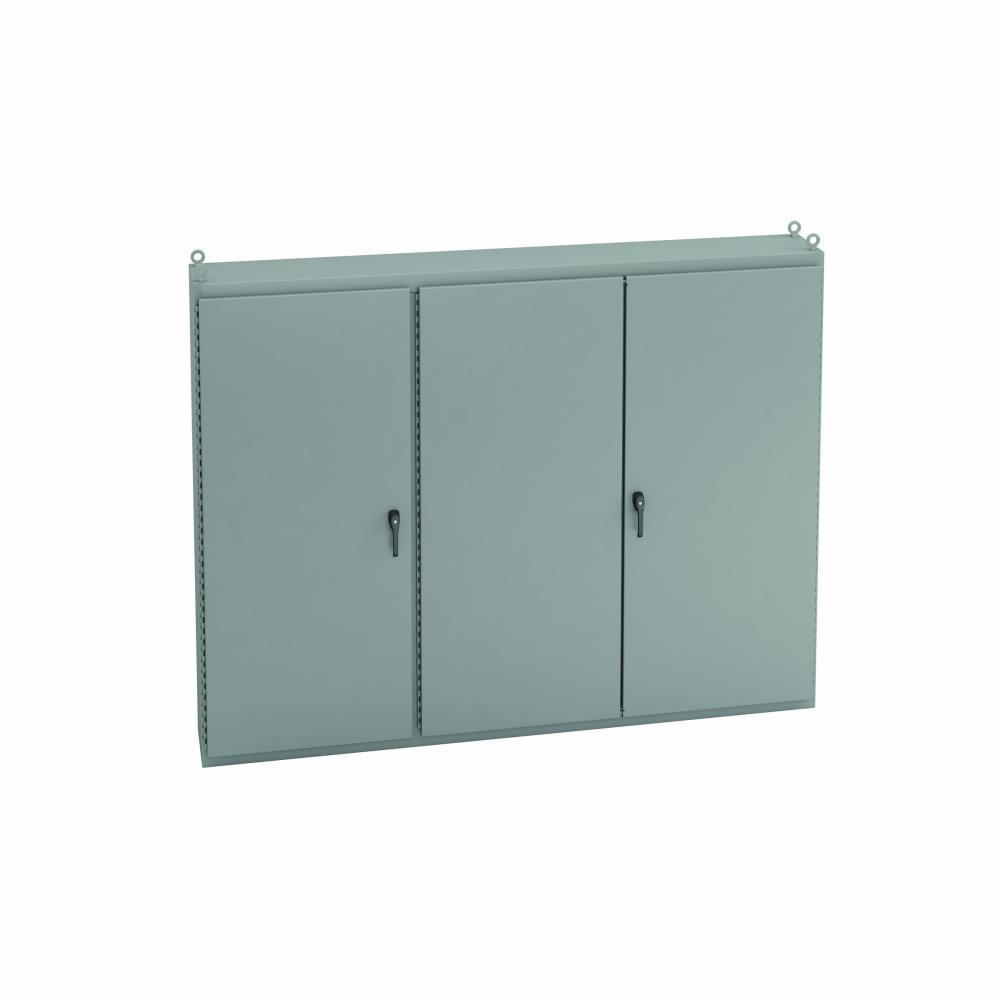

B-Line Ground Mount Enclosure, 3-Door, 112 in Width, 14 in Depth, 86 in Height, NEMA 12/IP65 NEMA Rating, Hinged Cover, 33 in W x 78 in H, 70 in W x 78 in H Panel, Lock: 3-Point, Floor/Freestanding Mounting, Carbon steel, Polyester Powder Coated, Gray

• https://externalassets.unilogcorp.com/ASSETS/DOCUMENTS/ITEMS/EN/1086_SDFQRCC_Catalog.pdf https://www.iesbuy.com//ASSETS/DOCUMENTS/ITEMS/EN/https://externalassets.unilogcorp.com/ASSETS/DOCUMENTS/ITEMS/EN/1086_SDFQRCC_Catalog.pdf

• Enclosure body 10 ga and door 12 ga are fabricated from steel
• All continuous welded seams are finished smooth
• Doors are secured to the body with removable concealed hinges and a center locating three-point key locking and padlock handle mechanism which closes the right side door over the left door
• Modern bevel profile on hinge side of enclosure door
• Right side door provides a mechanical interlock and serves as a master door
• Slave doors cannot open without activating mechanical interlock but can close in any order
• Door have an oil-resistant gasket
• Ground stud provided on door and body
• Print pocket is provided
• Heavy steel stiffeners welded across the back provide enclosure rigidity
• Large lifting eyebolts are supplied
• Lighting mounting channel provided
• Removable panels mounted on 3/8-16 collar studs and panel supports are furnished behind each door
• Panels have a white enamel finish
• Wash and phosphate undercoat
• 3-pt latching handle
