Eaton’s Electrical Sector under the Eaton brand offers the widest variety of molded case circuit breakers available today. Designed for electrical and machinery OEMs serving a range of industries and applications these proven designs incorporate the latest in innovation with the high reliability that has been our hallmark since the advent of the circuit breaker in the 1920s

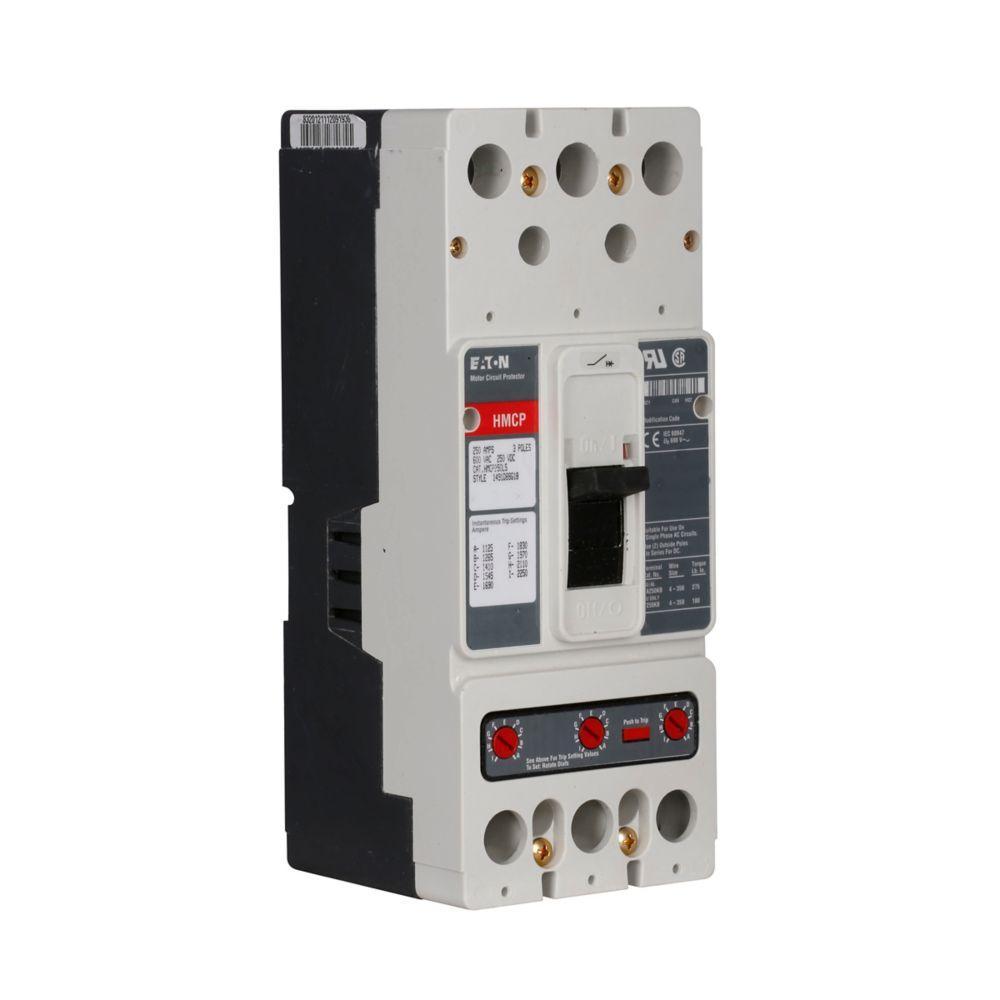

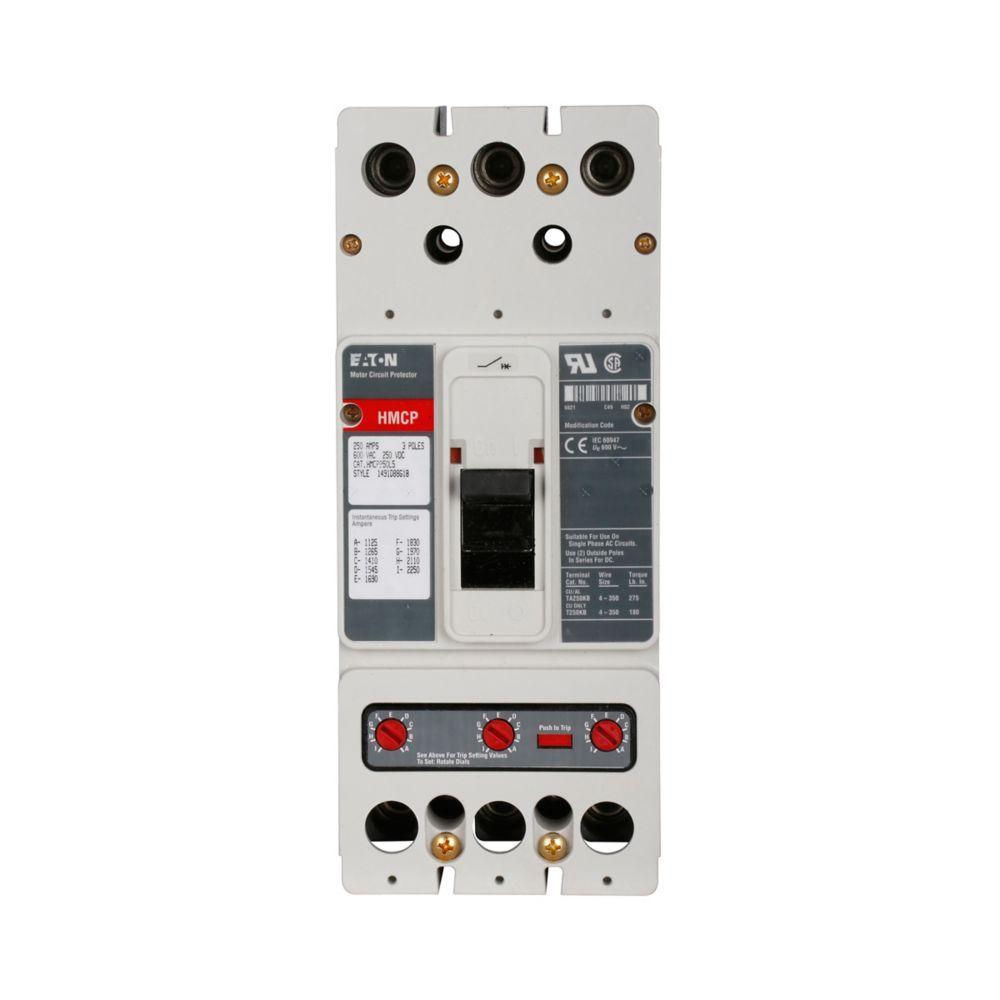

EATON Motor Circuit Protector, HMCP, Series: C Series, 600 VAC, 250 VDC, 250 A, J Frame, Magnetic Trip, 750 to 1500 A Trip, 3 Pole, 1A-1B Auxiliary, NEMA 5 Enclosure, 4.06 in L x 4.13 in W x 10 in H Dimensions

• https://externalassets.unilogcorp.com/ASSETS/DOCUMENTS/ITEMS/EN/E2MM3800W_Catalog_02.pdf https://www.iesbuy.com//ASSETS/DOCUMENTS/ITEMS/EN/https://externalassets.unilogcorp.com/ASSETS/DOCUMENTS/ITEMS/EN/E2MM3800W_Catalog_02.pdf
• https://externalassets.unilogcorp.com/ASSETS/DOCUMENTS/ITEMS/EN/HMCP400X5S42Z02_Installation_Manual_01.pdf https://www.iesbuy.com//ASSETS/DOCUMENTS/ITEMS/EN/https://externalassets.unilogcorp.com/ASSETS/DOCUMENTS/ITEMS/EN/HMCP400X5S42Z02_Installation_Manual_01.pdf
• https://externalassets.unilogcorp.com/ASSETS/DOCUMENTS/ITEMS/EN/LGX425032W_User_Manual_01.pdf https://www.iesbuy.com//ASSETS/DOCUMENTS/ITEMS/EN/https://externalassets.unilogcorp.com/ASSETS/DOCUMENTS/ITEMS/EN/LGX425032W_User_Manual_01.pdf
• https://externalassets.unilogcorp.com/ASSETS/DOCUMENTS/ITEMS/EN/HMCP250G5A04_Specification_Sheet_03.pdf https://www.iesbuy.com//ASSETS/DOCUMENTS/ITEMS/EN/https://externalassets.unilogcorp.com/ASSETS/DOCUMENTS/ITEMS/EN/HMCP250G5A04_Specification_Sheet_03.pdf
• VIDEO LINK https://www.youtube.com/watch?v=PY52j05p7to

• Convenient dial adjustment allows the user to select from eight different current levels for precise motor circuit protection
• High short circuit current ratings can be achieved without the need for fuses or additional limiters, reducing both space and spare parts requirements
• Motor inrush trip suppressor allows the starting of high efficiency motors without sacrificing sensitive levels of short circuit protection
• Clears low level faults (the most common type of fault in a motor circuit) more effectively than fuses, preventing faults from cascading and damaging equipment
• Easily test without having to replace the device (unlike fusible devices) by depressing a push to trip mechanism on the cover
